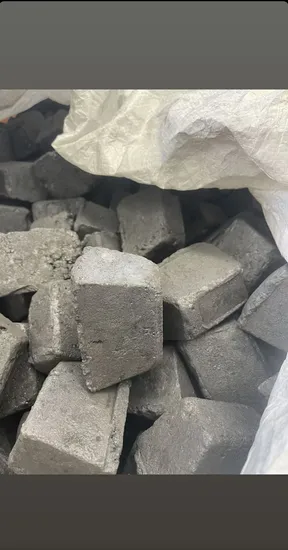

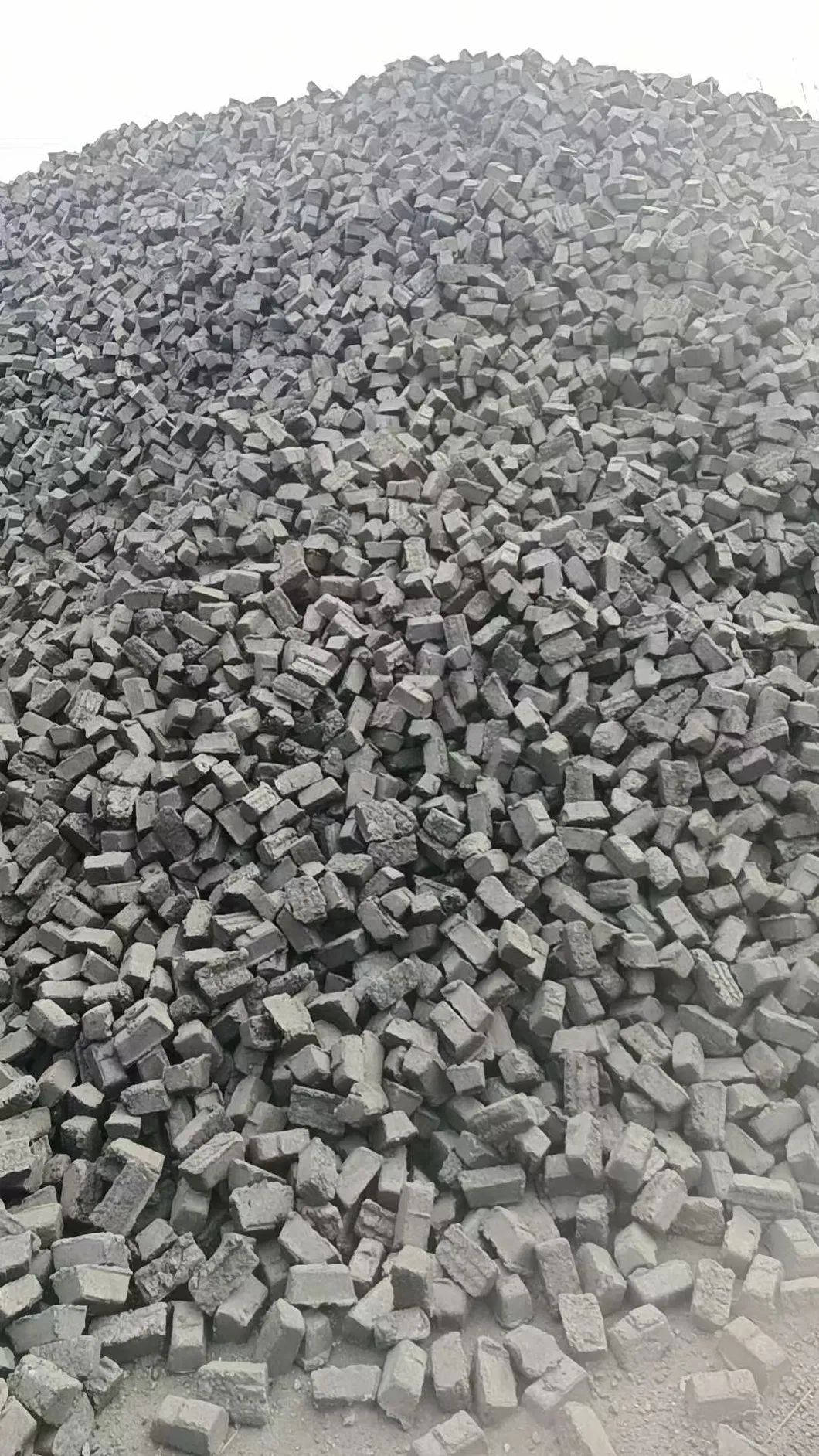

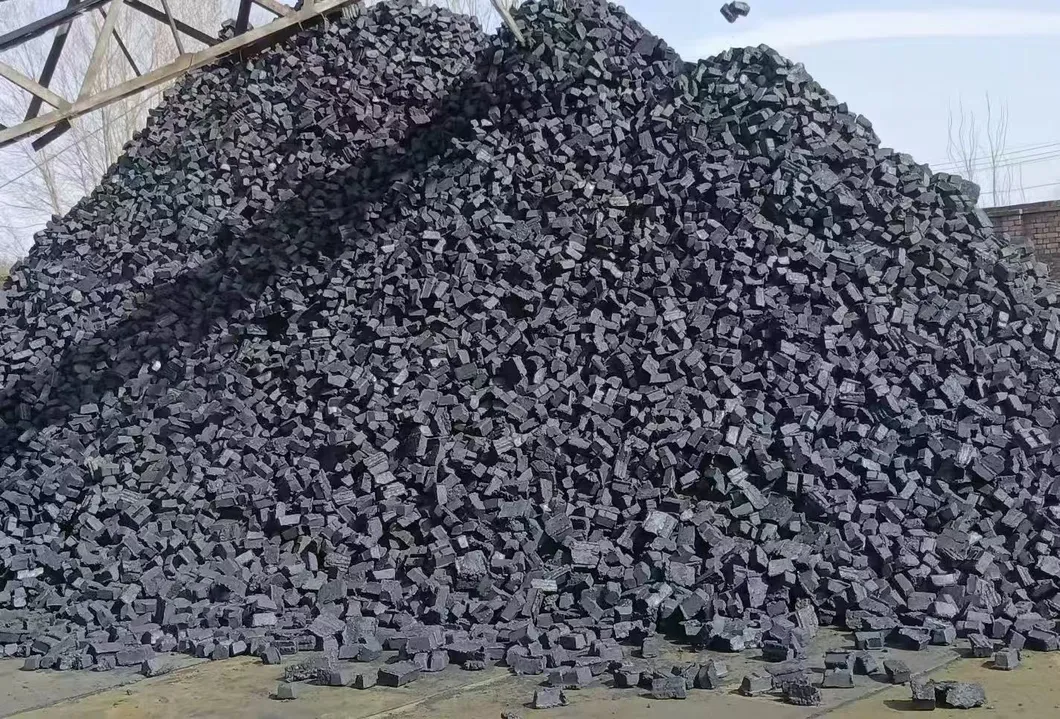

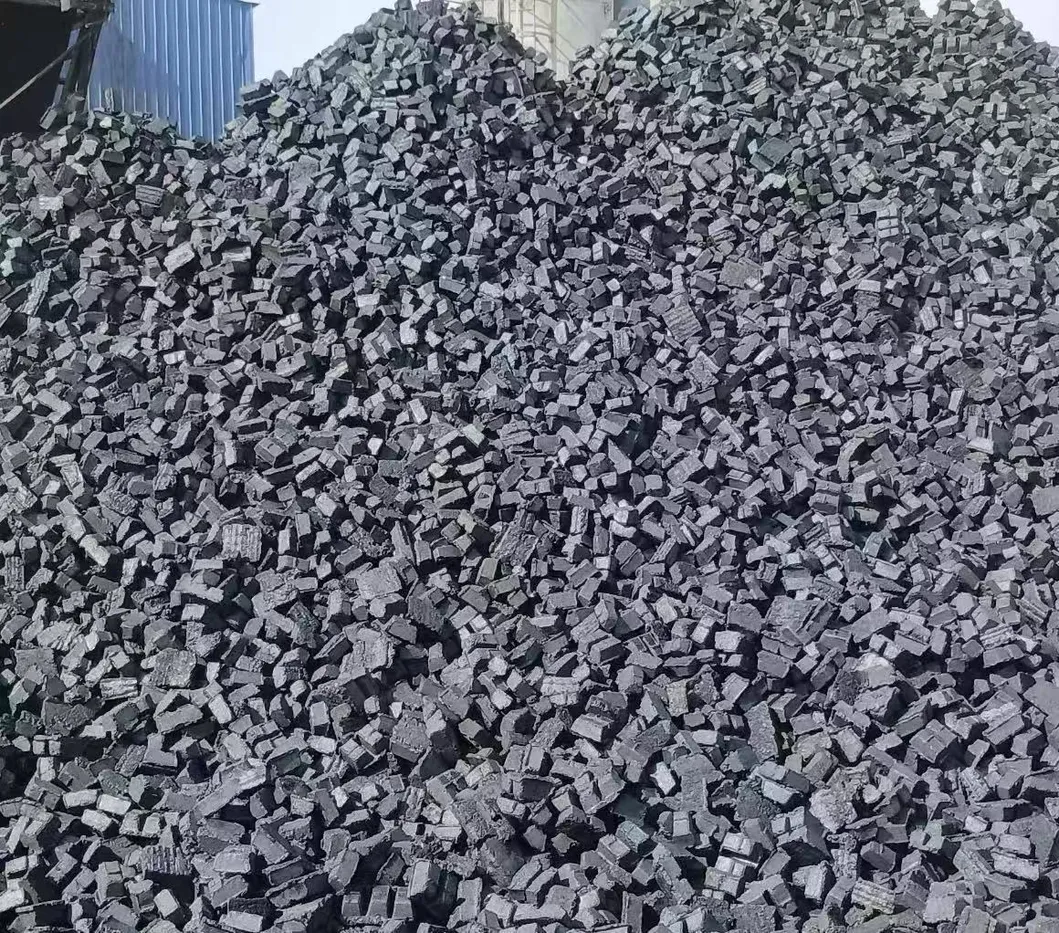

Electrode Paste for Electric Furnace Self Baking Carbon Paste
Electrode Paste for Electric Furnace Self Baking Carbon Paste
PDF Download
Contact Us Now
Product Description
Electrode paste is a conductive material used for self baking electrodes in various types of ferroalloys, calcium carbide, and other ore furnaces. Due to different design parameters of the submerged arc furnace, different electrode quality parameters are required. The electrode paste used for self baking electrodes is mainly produced from high-quality Taixi anthracite, residual anode, artificial graphite, petroleum coke, and other raw materials. The electrode paste product is prepared by blending, kneading, and shaping. With the rapid development of mining heat furnace technology, electrodes, as the heart of normal operation of mining heat furnaces, require increasingly strict quality requirements for electrode paste. Our company is closely following the development of ore heating furnace technology and constantly committed to the research of electrode paste formula, process, and technology. Our products are not limited to meeting national industry standards, but also focus on precise customization of electrode paste that meets the quality requirements of each furnace according to different furnace types. As early as 2014, the company successfully developed an electrode paste with a diameter of 1.9 meters that matched the self baking electrode required for the world's largest 63000KVA large silicon iron ore hot furnace. It has been running smoothly since use, and the production and smelting are in the best state.
| Carbon Electrode Paste is produced by putting petroleum coke and asphalt into melting tank to dehydration, melt, then adding them into kneading pot to kneading, molding and sintering. | |||||
| Specification | Ash % (max) | V.M. % (max) | Restivity μΩm (max) | Compressive strength Mpa % (min) | Volume density % (min) |
| Airtight Electrode Paste | 4.0-6.0 | 12.00-15.50 | 65-75 | 17-18 | 1.37g/cm3 |
| Standard Electrode Paste | 7.0-11.0 | 9.50-15.50 | 80-90 | 20-22 | 1.37g/cm3 |
| Chemical Electrode Paste | 11 | 11.0-15.5 | 90 | 18 | 1.37g/cm3 |
Our Advantages1. Factory directly with best price
2.Professional engineer to control the product quality
3.High quality control system
4.Flexible payment terms for your choose

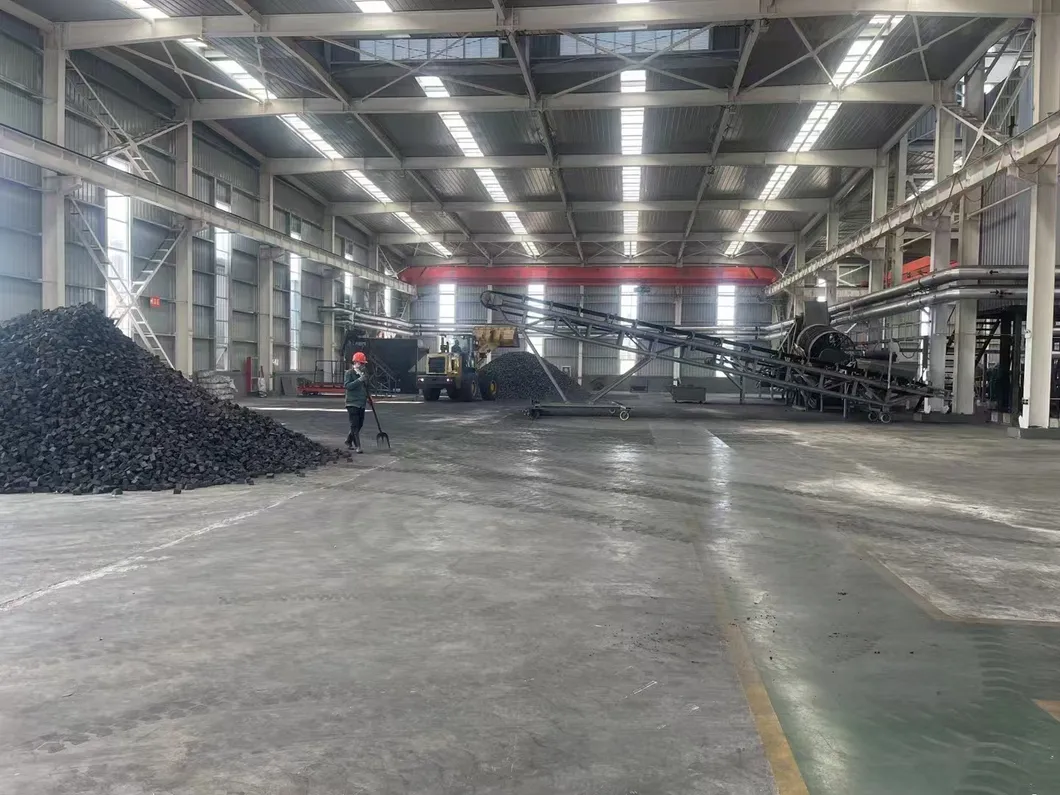

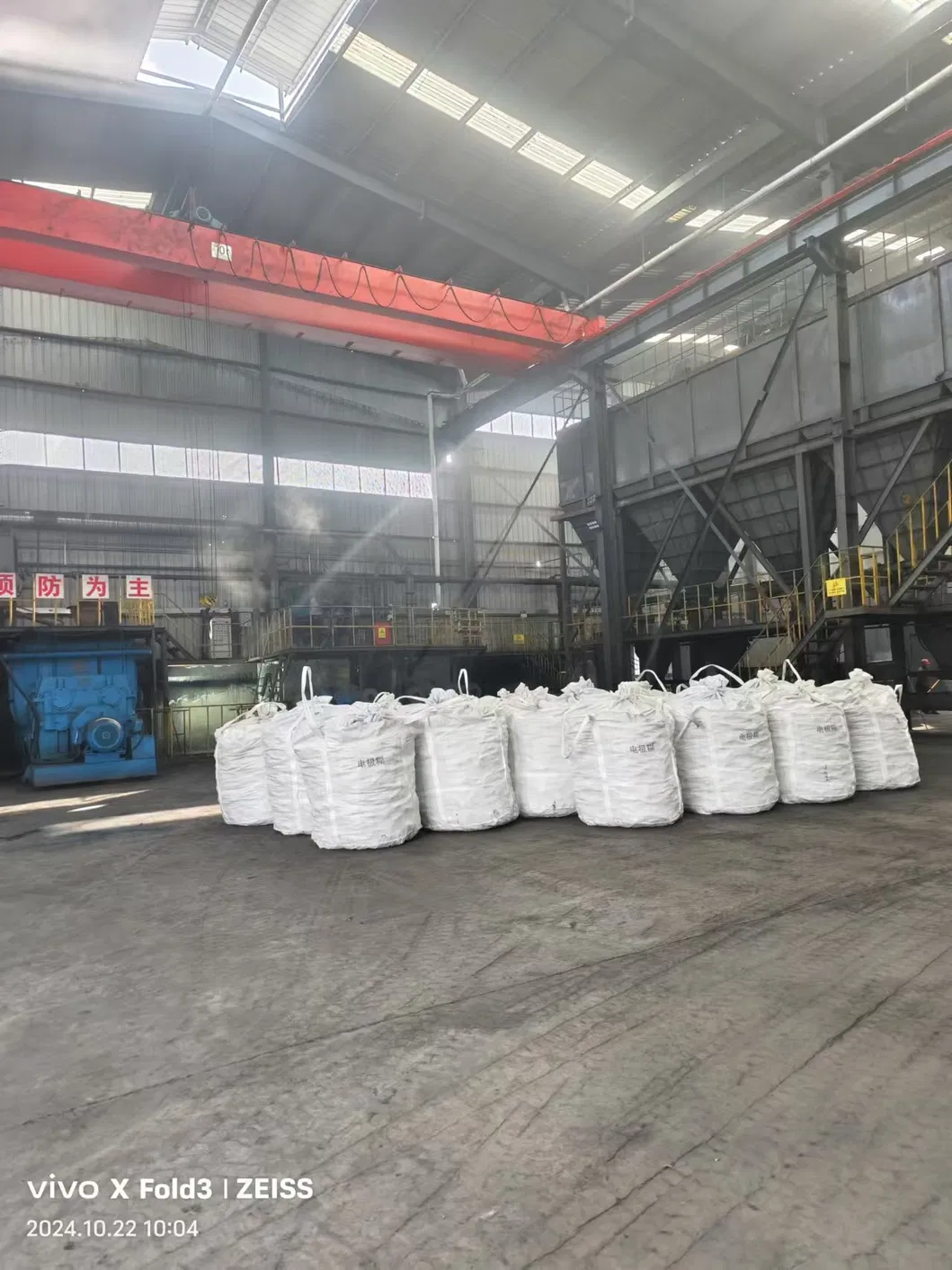

Company Profile
Shijiazhuang Nalai Biotechnology Co., Ltd Provide high quality Graphite electrode, Graphite electrode mainly petroleum
coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading, molding, baking and graphitization,
machining, made of, can be divided into ordinary power, high power and high power, mainly used in steel smelting electric arc furnace and refining furnace smelting furnace, electric furnace steelmaking is the use of graphite electrode in furnace to import
he current, strong current in the lower electrode by gas arc discharge, use the heat generated by the arc for smelting.Graphite electrodes of different diameters are used according to the capacity of the electric furnace. For continuous use of the electrodes, the electrodes are connected by the threaded joint of the electrodes. The graphite electrode used in steelmaking accounts for about 70 ~ 80% of the total graphite electrode consumption.
coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading, molding, baking and graphitization,
machining, made of, can be divided into ordinary power, high power and high power, mainly used in steel smelting electric arc furnace and refining furnace smelting furnace, electric furnace steelmaking is the use of graphite electrode in furnace to import
he current, strong current in the lower electrode by gas arc discharge, use the heat generated by the arc for smelting.Graphite electrodes of different diameters are used according to the capacity of the electric furnace. For continuous use of the electrodes, the electrodes are connected by the threaded joint of the electrodes. The graphite electrode used in steelmaking accounts for about 70 ~ 80% of the total graphite electrode consumption.
FAQ
Q: Where can I get product and price information?
A: Send us inquiry e-mail, we will contact with you when we receive your email,or contact me on chat app.
Q: Are you trading company or factory?
A: We are direct factory and have the most advanced machine and about 100 employee in our 18000m2 workshop.
Q: What's the minimum order quantity?
A: 20tons, one 20' fcl.
Q: What's the delivery time?
A: 2-3 weeks after got the deposit.
Q: What's your payment?
A: T/T, L/C at sight
Q: How to delivery the goods?
A: We deliver the goods by truck to port, or loading in container in factory.
A: We deliver the goods by truck to port, or loading in container in factory.
Q: What is the term of the delivery?
A: FOB, CFR, CIF, etc.
Competitive price and high quality products, when we get your inquiry, our team will get back to you within 24 hours.
