Graphite Electrode for Oxidation Resistance UHP 200mm 300mm 400mm 500mm
Graphite Electrode for Oxidation Resistance UHP 200mm 300mm 400mm 500mm
PDF Download
Contact Us Now
Product Description
Product Description
Graphite Electrodes
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Specification
Specification
| ITEM | Regular power | High power | Ultra High Power | ||||
| UNIT | 3-24inch | 4-24inch | 14-24inch | 12-20inch | 22-28inch | ||
| φ75-600mm | φ100-300mm | φ350-600mm | φ300-500mm | φ550-700mm | |||
| Resistivity | Electrode | μΩ·m | 7.0-9.0 | 5.8-6.8 | 5.5-6.5 | 4.8-5.8 | 4.5-5.5 |
| Nipple | 4.0-4.5 | 4.0-5.0 | 3.5-4.0 | 3.0-4.0 | 2.5-3.5 | ||
| Bending stregth | Electrode | Mpa | 8.0-12.0 | 9.0-12.0 | 10.0-14 | 10.0-15.0 | 12.0-16.0 |
| Nipple | 19.0-22.0 | 16.0-20 | 20.0-23.0 | 20.0-24.0 | 22.0-25.0 | ||
| Elastic Modulus | Electrode | Gpa | 7.0-11.0 | 8.0-12.0 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
| Nipple | 12.0-14.0 | 12.0-15.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
| Bulk density | Electrode | g/cm3 | 1.60-1.65 | 1.68-1.70 | 1.68-1.72 | 1.70-1.75 | 1.70-1.75 |
| Nipple | 1.75-1.8 | 1.78-1.82 | 1.78-1.82 | 1.78-1.85 | 1.8-1.85 | ||
| Ash | Electrode | % | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 |
| Nipple | |||||||
| Electrode | 10-6/ºC | 2.0-2.4 | 1.6-2.0 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 | |
| CTE | Nipple | 100-600ºC | 1.8-2.2 | 1.1-1.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 |

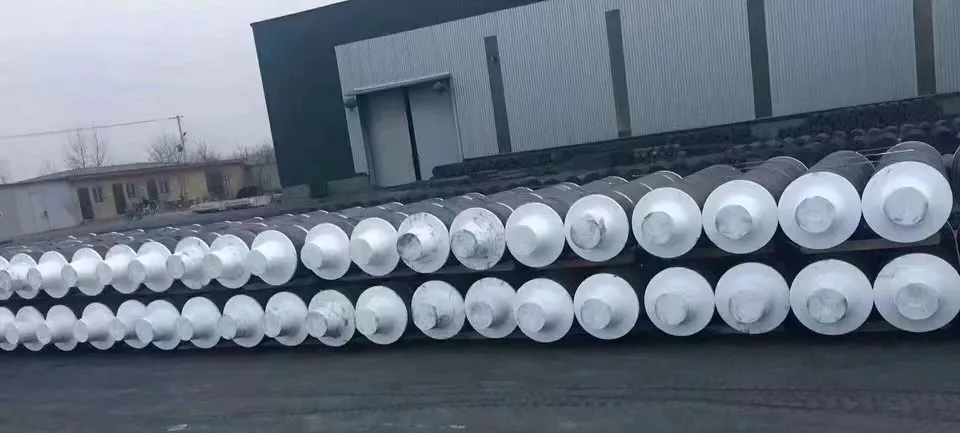

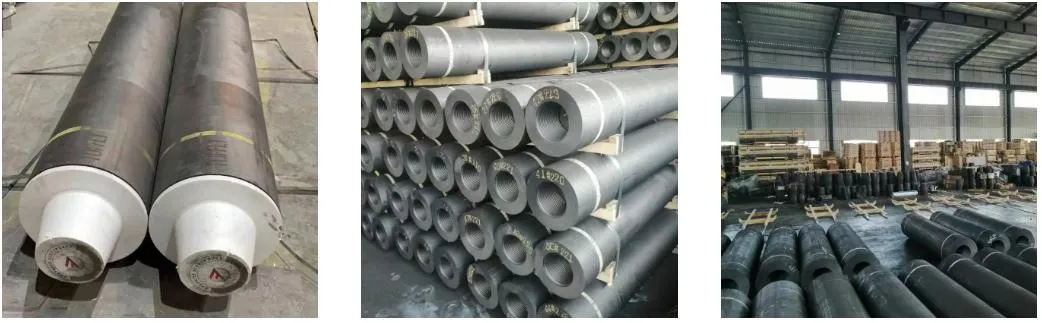

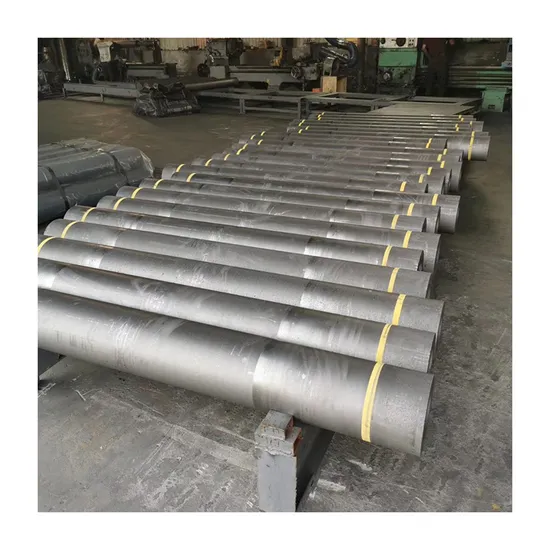

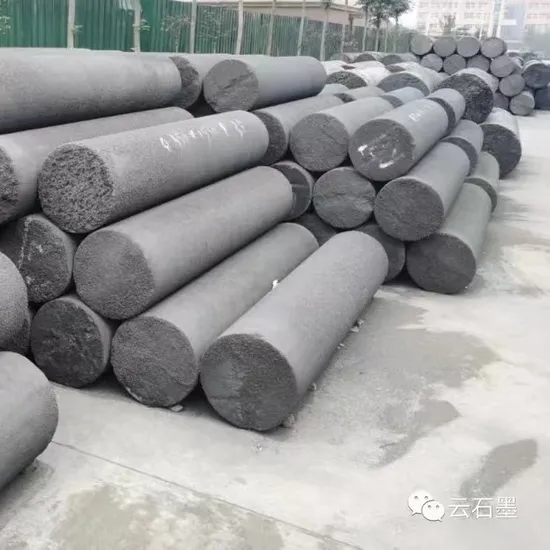

Product Show

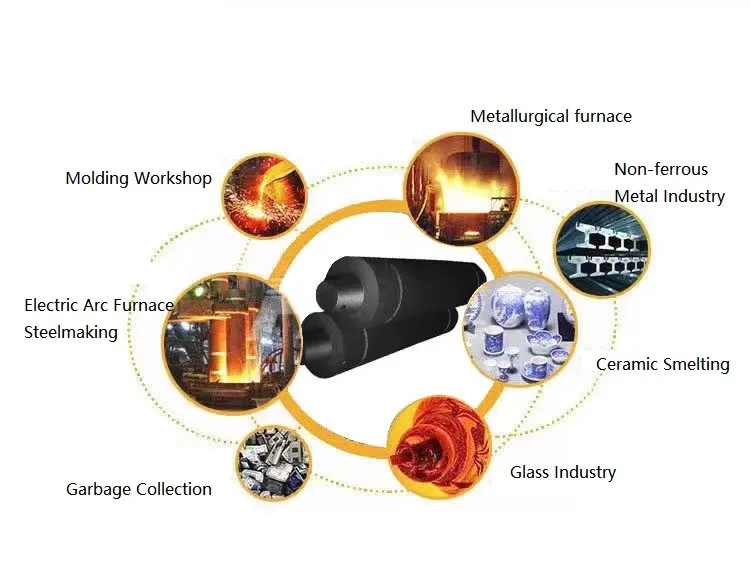

Application

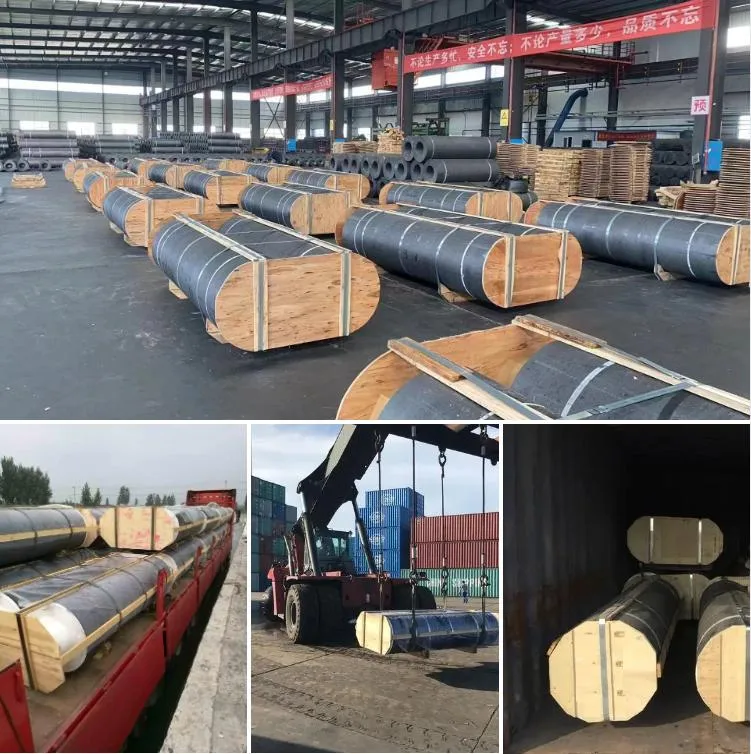

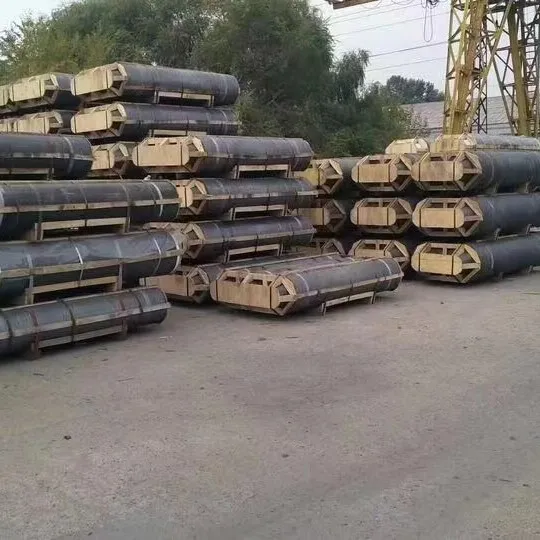

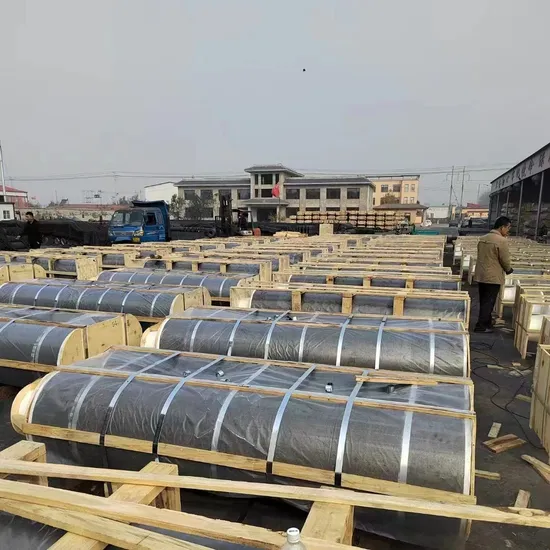

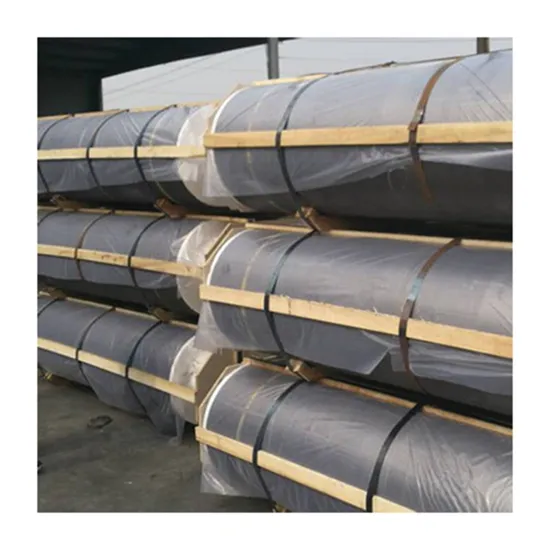

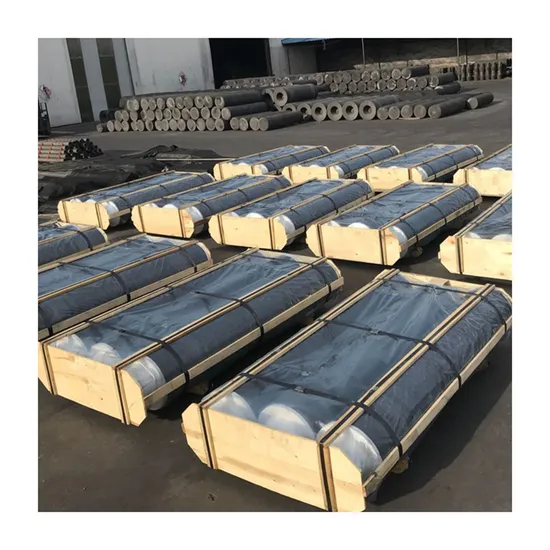

Packing & Delivery
Certificate
Company Profile
Shijiazhuang Nalai Biotechnology Co., Ltd is a professional manufacturer in integrating design, development, trial and production. Our main products are graphite electrode, graphite rod, graphite block, graphite crucible., with 30 technicians and 360 skilled workers, and has a strict quality control system. Custom styles are available.
Competitive price and high quality products, when we get your inquiry, we will come back to you at the first time. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers". To perfect our service, we will try our best to provide the products with good quality at the reasonable price.
We have rich experience in international business; We do business in more than 20 countries, such as Europe, North American, South American, South Africa, Middle East, Southeast Asia (Pakistan, Bangladesh, Israel, Iraq, Iran, Dubai, Tanzania, Kenya, Chile, Thailand, Vietnam, Malaysia, Indonesia… ).
We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Application
Packing & Delivery
Certificate
Company Profile
Shijiazhuang Nalai Biotechnology Co., Ltd is a professional manufacturer in integrating design, development, trial and production. Our main products are graphite electrode, graphite rod, graphite block, graphite crucible., with 30 technicians and 360 skilled workers, and has a strict quality control system. Custom styles are available.
Competitive price and high quality products, when we get your inquiry, we will come back to you at the first time. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers". To perfect our service, we will try our best to provide the products with good quality at the reasonable price.
We have rich experience in international business; We do business in more than 20 countries, such as Europe, North American, South American, South Africa, Middle East, Southeast Asia (Pakistan, Bangladesh, Israel, Iraq, Iran, Dubai, Tanzania, Kenya, Chile, Thailand, Vietnam, Malaysia, Indonesia… ).
We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

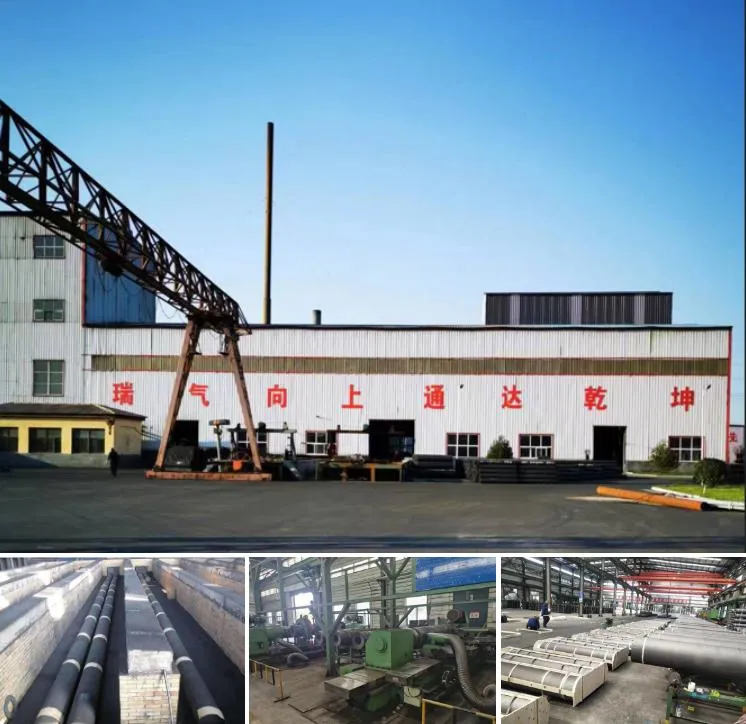

Factory & Workshop
FAQ
Q: Where can I get product and price information?
A: Send us inquiry e-mail, we will contact with you when we receive your email,or contact me on chat app.
Q: What is the term of the delivery?
A: FOB, CFR, CIF, etc.
Q: How to delivery the goods?
A: We deliver the goods by truck to port, or loading in container in factory.
Q: Are you trading company or factory?
A: We are direct factory and have the most advanced machine and about 100 employee in our 18000m2 workshop.
Q: What's the minimum order quantity?
A: 20tons, one 20' fcl.
Q: What's the delivery time?
A: 2-3 weeks after got the deposit.
Competitive price and high quality products, when we get your inquiry, our team will get back to you within 24 hours.
