Hot Sale HP Graphite Electrode Good Quality UHP Graphite Electrode
Hot Sale HP Graphite Electrode Good Quality UHP Graphite Electrode
PDF Download
Contact Us Now
Product Description
Basic Info.
Model NO.
Nalai 2278
Shape
Cylinder
Delivery Time
7-10days
Application
Eaf and Lf Furnace for Steel Melting
Bulk Density
1.68-1.74 g/cm3
Model No.
Nalai200
Modulus of Rupture
10-14 MPa
Type
Graphite Electrodes
Carbon Content
High-Carbon
Grade
UHP
Forming Way
Molded Graphite
Crystal Morphology
Compact Crystalline Graphite
Composition
Graphite, Needle Coke, Petroleum Coke
Transport Package
Wooden Pallets with Steel Strips
Specification
200mm 250mm 300mm or customized
Trademark
Nalai
Origin
China
HS Code
8545190000
Production Capacity
900000ton/Year
Product Description

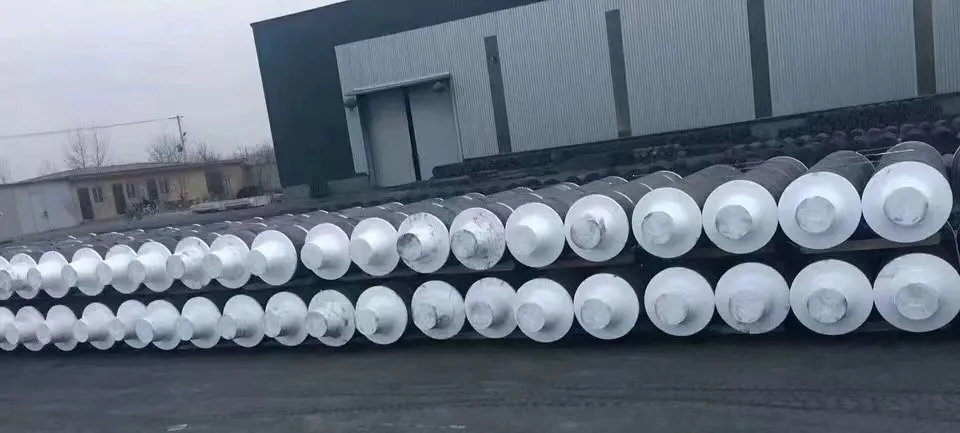

Graphite Electrodes
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
Application

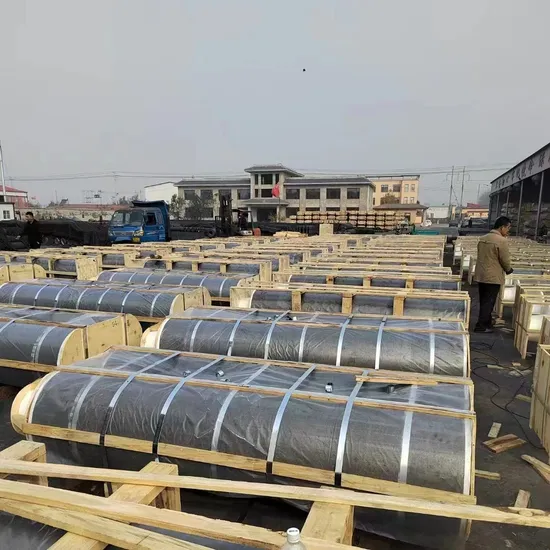

Packing & Delivery
Certificate
Company Profile
Shijiazhuang Nalai Biotechnology Co., Ltd Provide high quality Graphite electrode, Graphite electrode mainly petroleum
coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading, molding, baking and graphitization,
machining, made of, can be divided into ordinary power, high power and high power, mainly used in steel smelting electric arc furnace and refining furnace smelting furnace, electric furnace steelmaking is the use of graphite electrode in furnace to import
he current, strong current in the lower electrode by gas arc discharge, use the heat generated by the arc for smelting.Graphite electrodes of different diameters are used according to the capacity of the electric furnace. For continuous use of the electrodes, the electrodes are connected by the threaded joint of the electrodes. The graphite electrode used in steelmaking accounts for about 70 ~ 80% of the total graphite electrode consumption
If you need, please feel free to contact us. We will provide you with the most competitive price, high quality and excel service.,
etc

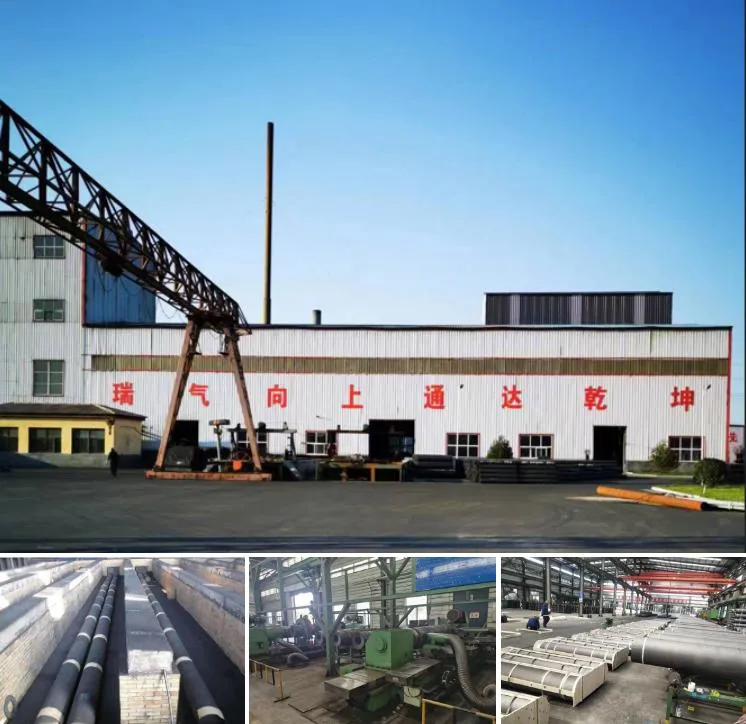

Factory & Workshop
FAQ
Q: Where can I get product and price information?
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.

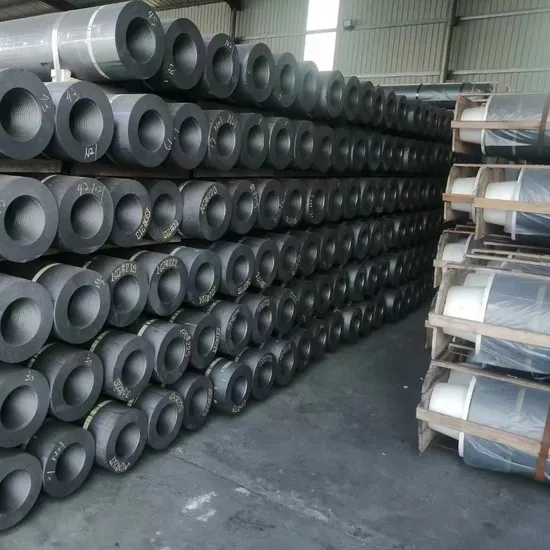

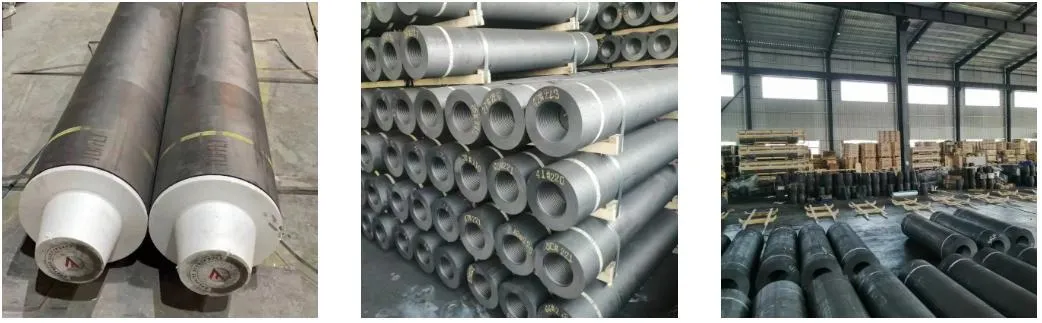

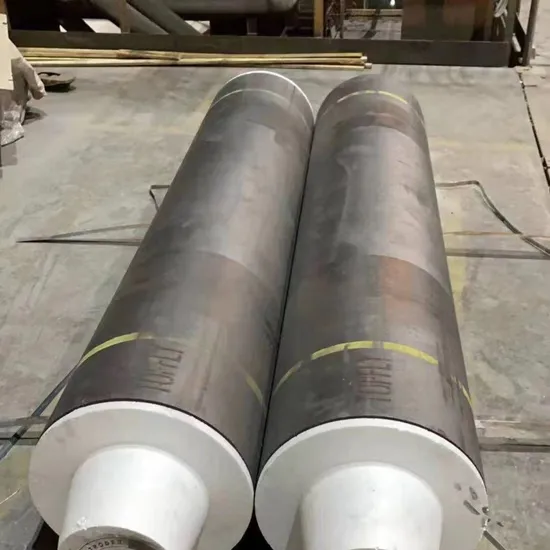

Product Show * Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Specification
Specification
| ITEM | Regular power | High power | Ultra High Power | ||||
| UNIT | 3-24inch | 4-24inch | 14-24inch | 12-20inch | 22-28inch | ||
| φ75-600mm | φ100-300mm | φ350-600mm | φ300-500mm | φ550-700mm | |||
| Resistivity | Electrode | μΩ·m | 7.0-9.0 | 5.8-6.8 | 5.5-6.5 | 4.8-5.8 | 4.5-5.5 |
| Nipple | 4.0-4.5 | 4.0-5.0 | 3.5-4.0 | 3.0-4.0 | 2.5-3.5 | ||
| Bending stregth | Electrode | Mpa | 8.0-12.0 | 9.0-12.0 | 10.0-14 | 10.0-15.0 | 12.0-16.0 |
| Nipple | 19.0-22.0 | 16.0-20 | 20.0-23.0 | 20.0-24.0 | 22.0-25.0 | ||
| Elastic Modulus | Electrode | Gpa | 7.0-11.0 | 8.0-12.0 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
| Nipple | 12.0-14.0 | 12.0-15.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
| Bulk density | Electrode | g/cm3 | 1.60-1.65 | 1.68-1.70 | 1.68-1.72 | 1.70-1.75 | 1.70-1.75 |
| Nipple | 1.75-1.8 | 1.78-1.82 | 1.78-1.82 | 1.78-1.85 | 1.8-1.85 | ||
| Ash | Electrode | % | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 |
| Nipple | |||||||
| Electrode | 10-6/ºC | 2.0-2.4 | 1.6-2.0 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 | |
| CTE | Nipple | 100-600ºC | 1.8-2.2 | 1.1-1.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 |

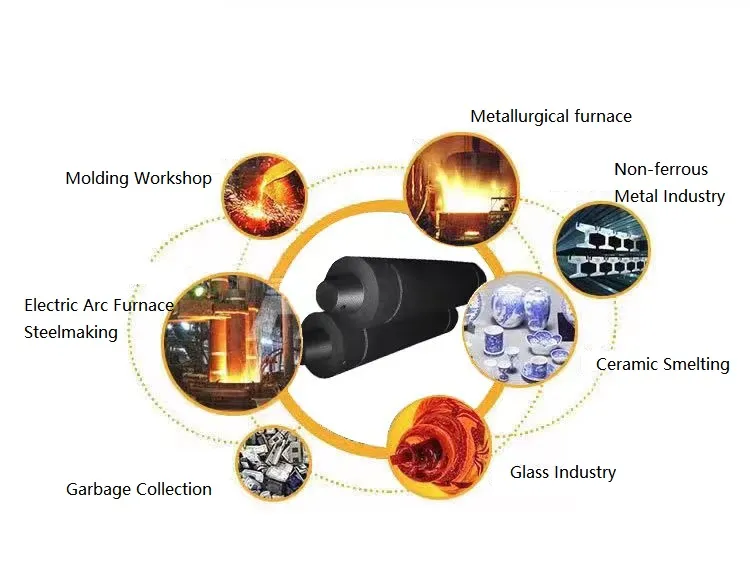

Application

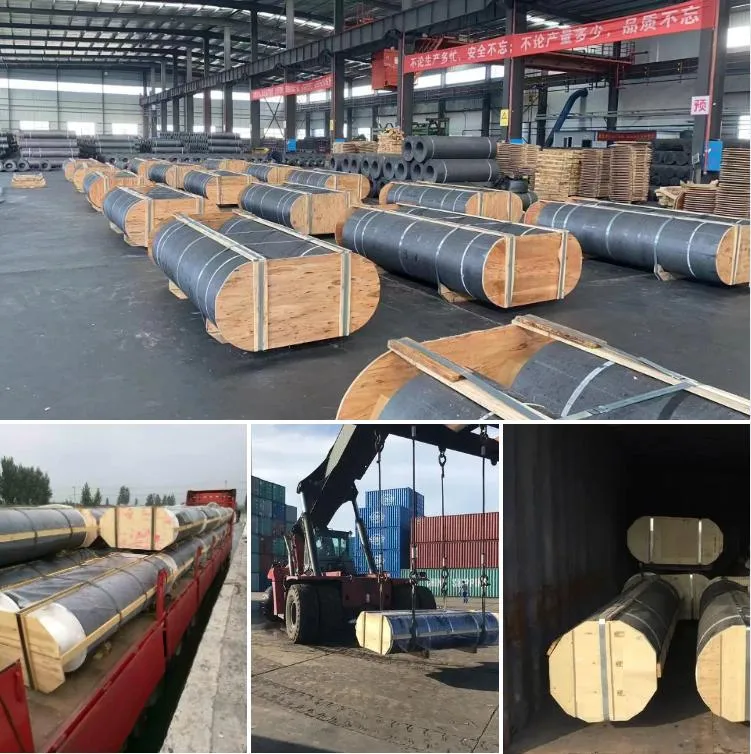

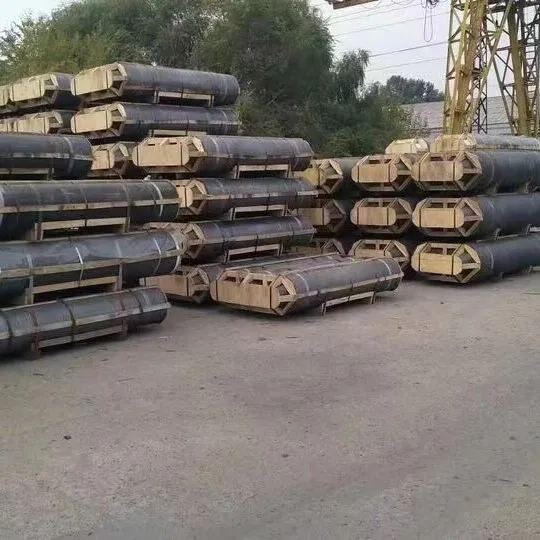

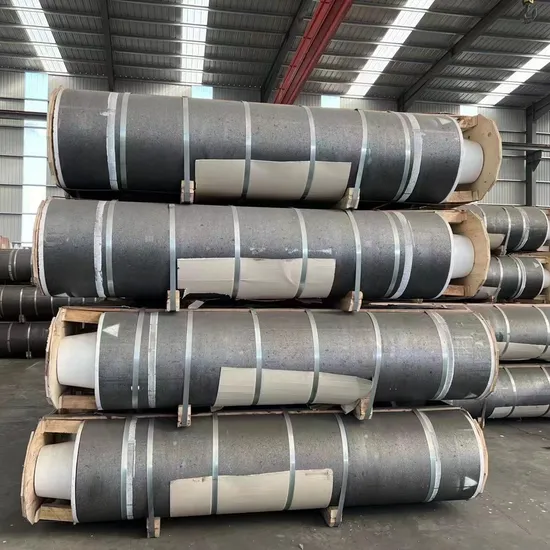

Packing & Delivery
Certificate
Company Profile
Shijiazhuang Nalai Biotechnology Co., Ltd Provide high quality Graphite electrode, Graphite electrode mainly petroleum
coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading, molding, baking and graphitization,
machining, made of, can be divided into ordinary power, high power and high power, mainly used in steel smelting electric arc furnace and refining furnace smelting furnace, electric furnace steelmaking is the use of graphite electrode in furnace to import
he current, strong current in the lower electrode by gas arc discharge, use the heat generated by the arc for smelting.Graphite electrodes of different diameters are used according to the capacity of the electric furnace. For continuous use of the electrodes, the electrodes are connected by the threaded joint of the electrodes. The graphite electrode used in steelmaking accounts for about 70 ~ 80% of the total graphite electrode consumption
If you need, please feel free to contact us. We will provide you with the most competitive price, high quality and excel service.,
etc
Factory & Workshop
FAQ
Q: Where can I get product and price information?
A: Send us inquiry e-mail, we will contact with you when we receive your email,or contact me on chat app.
Q: What is the term of the delivery?
A: FOB, CFR, CIF, etc.
Q: How to delivery the goods? A: We deliver
the goods by truck to port, or loading in container in factory.
Q: Are you trading company or factory?
A: We are direct factory
and have the most advanced machine and about 100 employee in our 18000m2 workshop.
and have the most advanced machine and about 100 employee in our 18000m2 workshop.
Q: What's the minimum order quantity?
A: 20tons, one 20' fcl.
Q: What's the delivery time?
A: 2-3 weeks after got the deposit.
Competitive price and high quality products, when we get your inquiry, we will come back to you at the first time.
