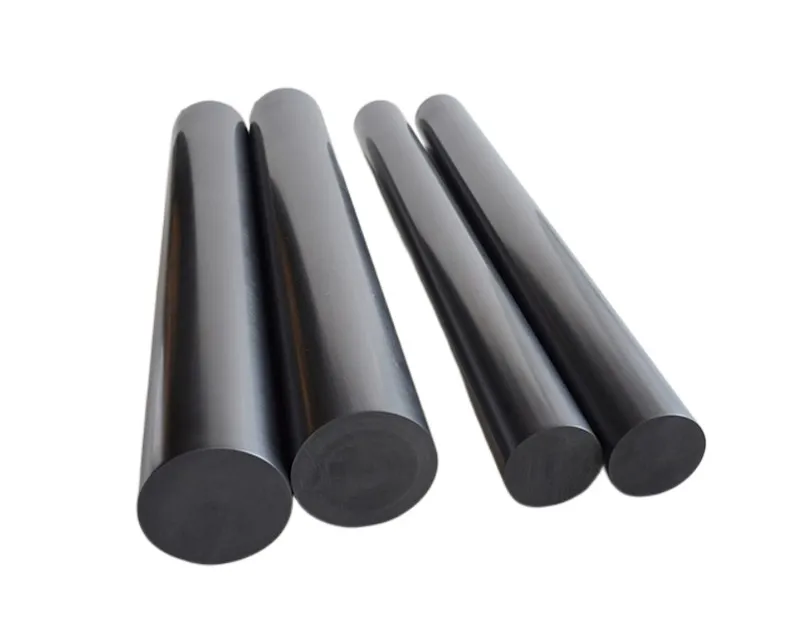

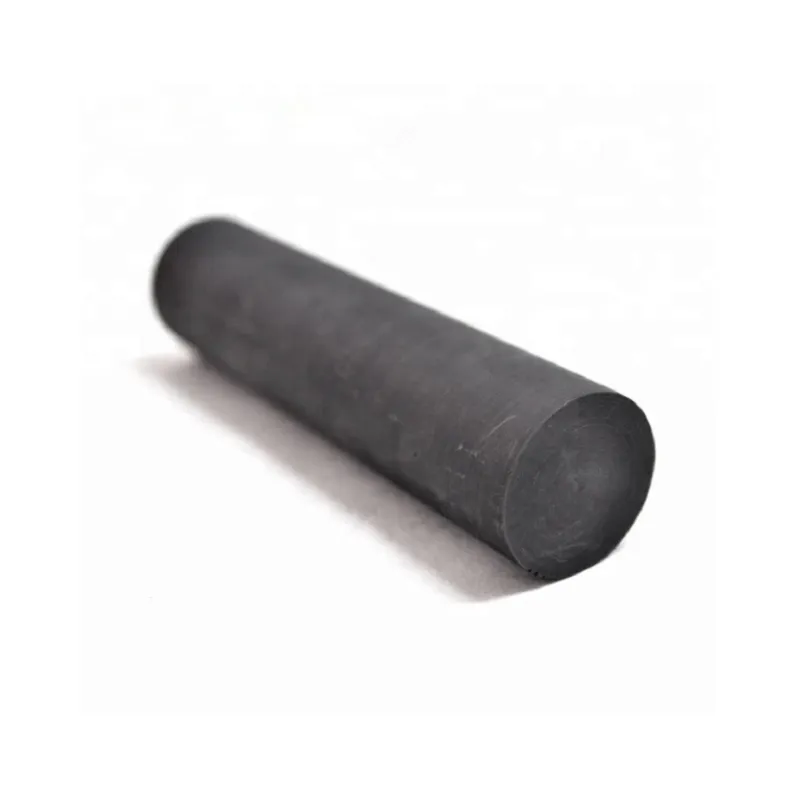

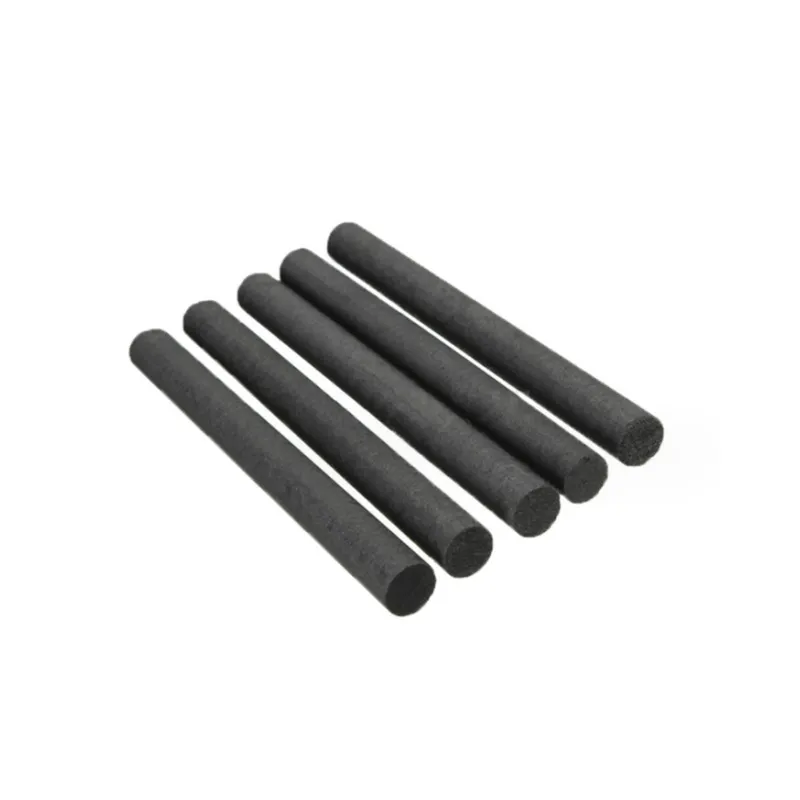

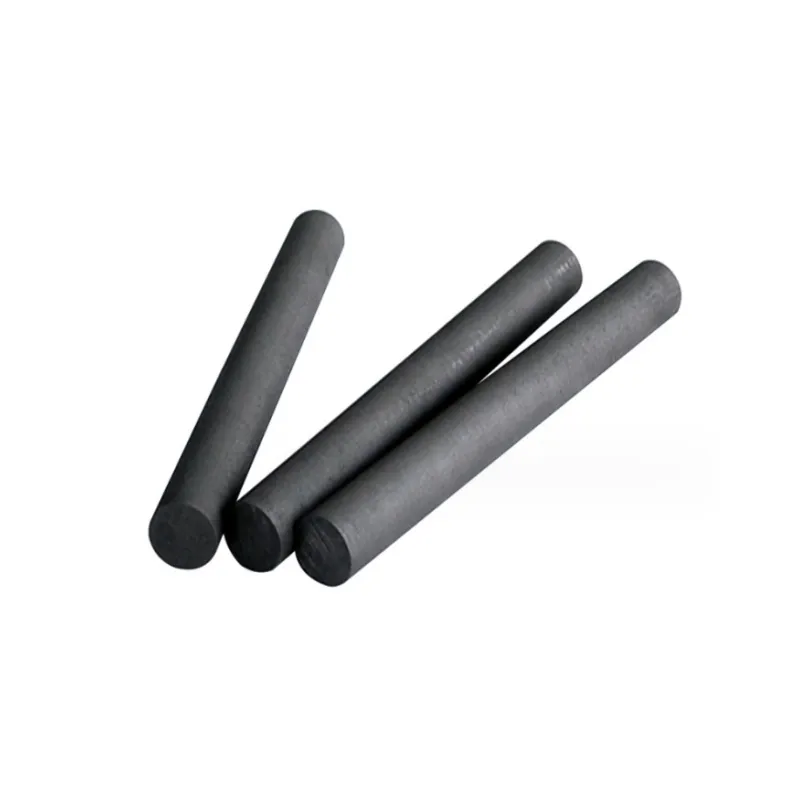

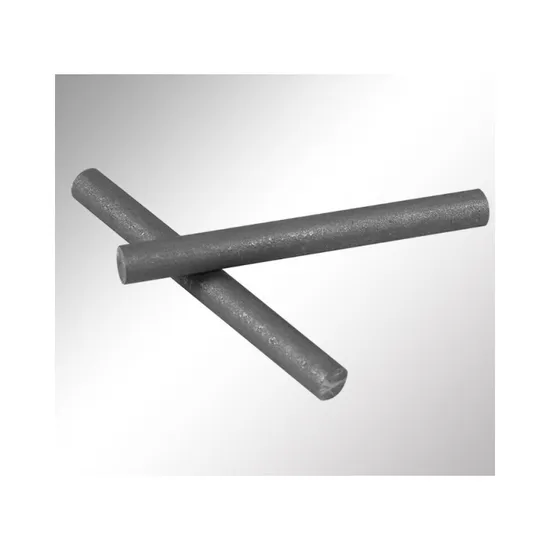

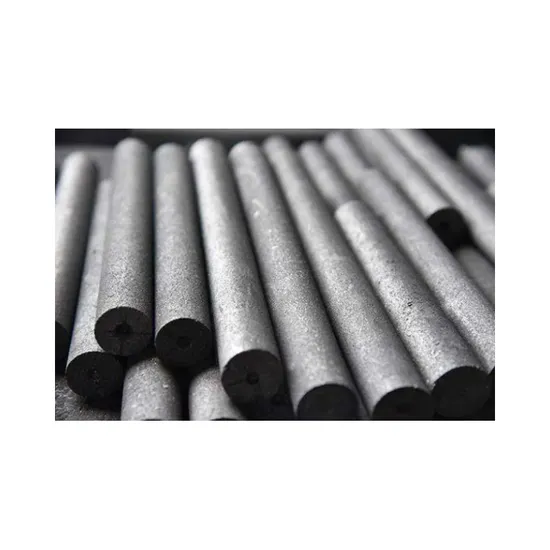

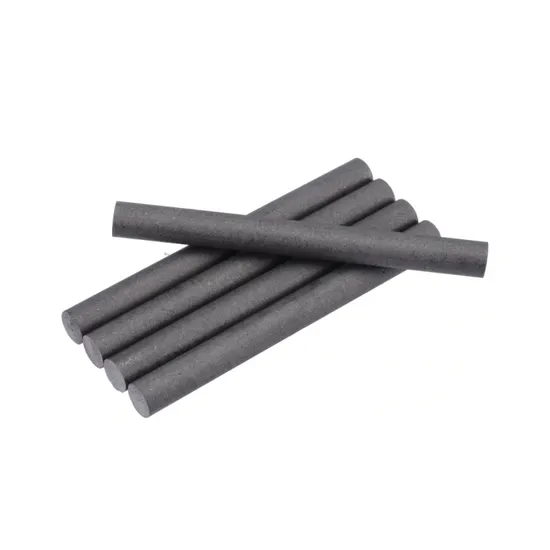

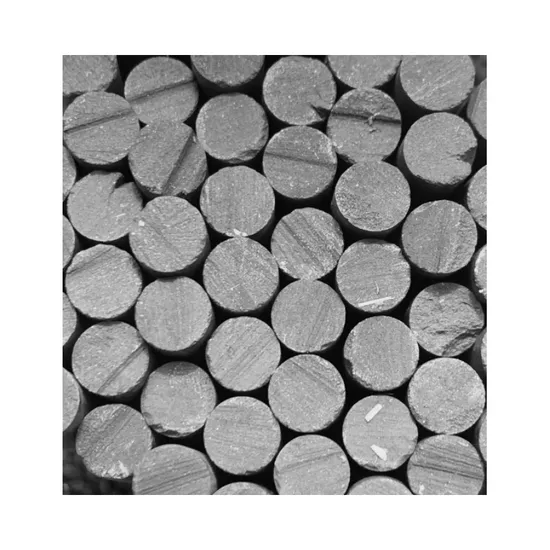

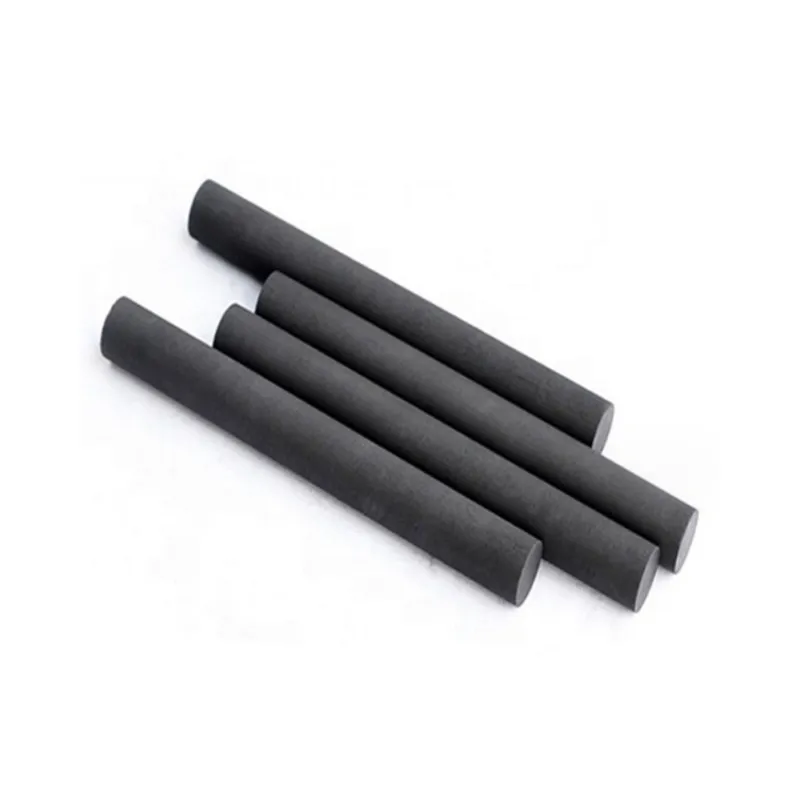

Low Electric Resistivity High Carbon Graphite Rod for Vacuum Furnace Heat Treating
Low Electric Resistivity High Carbon Graphite Rod for Vacuum Furnace Heat Treating
PDF Download
Contact Us Now
Product Description
- Overview
- Detailed Photos
- Application
- Specification
- Packaging & Shipping
- Certifications
- Company Profile
- FAQ
Basic Info.
Model NO.
NaLai-Graphite Rod-20
Expansion Ratio
>350ml/g
Grain Size
Customized
Delivery Time
7-10days
Material
High Purity Graphite
Type
Graphite Electrodes
Grade
UHP
Forming Way
Molded Graphite
Crystal Morphology
Compact Crystalline Graphite
Composition
Graphite, Needle Coke, Petroleum Coke
Transport Package
Wooden Pallets with Steel Strips
Specification

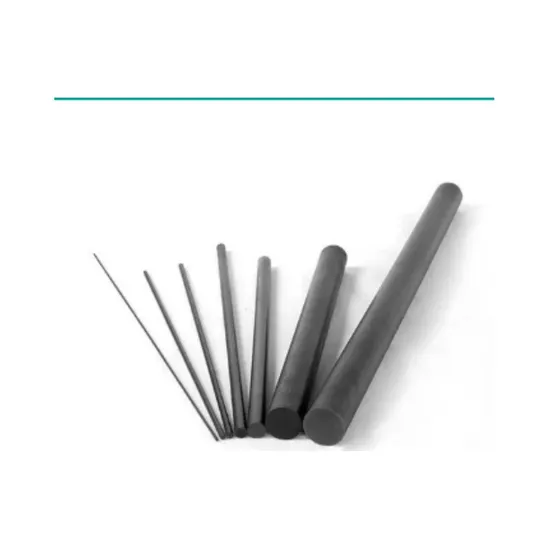

3mm, 4mm, 5mm, customize
Trademark
Nalai
Origin
China
HS Code
8545190000
Production Capacity
900000 Tons/ Year
Product Description
- Anti-oxidation, anti-abrasion, long service life.
- Customize: Produced according to Customers' Needs.
- Professional Design Ability according to Application.
- Complete Supply Chain System Assuring Competitive Product Price.
- Globally 7x24 Sales and Technical Services, Fast Response for Delivery.

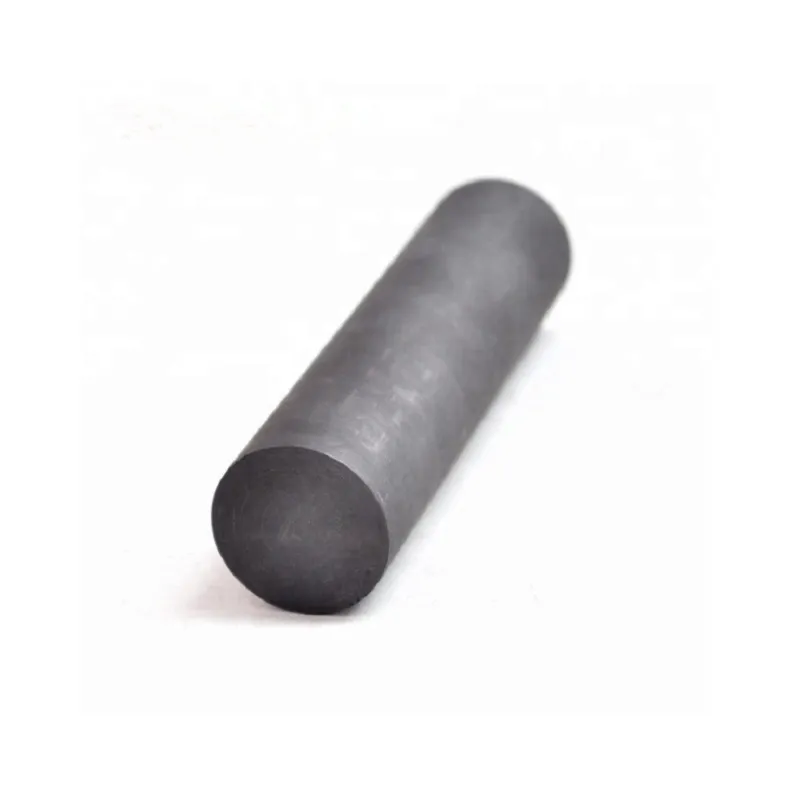

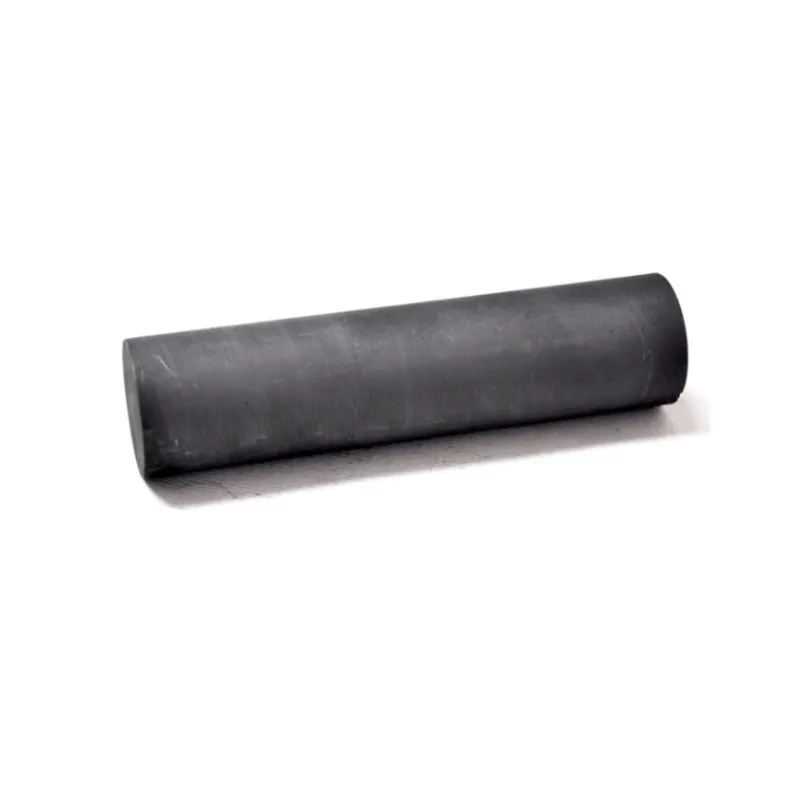

Graphite rods function as homogenizing, soaking, clearing impurities and degassing during precious metal smelting.Graphite rod features: good lubricity, high temperature resistance, oxidation resistance, acid and alkali resistance, strong thermal shock resistance, good electrical conductivity, high mechanical strength.
| Average Grain Size (µm) |
Bulk Density (g/cc) |
Specific Resistivity (μΩ·m) |
Flexural Strength (Mpa) |
Compressive Strength (Mpa) |
Shore Hardness | C.T.E(100-600ºC) ×10-6/ºC |
Ash (ppm) |
| 6 | ≥1.8 | ≤13.0 | ≥55.0 | ≥125.0 | ≥70.0 | ≤4.7 | ≤30 |
| 3 | ≥1.86 | ≤13.0 | ≥68.0 | ≥135.0 | ≥85.0 | ≤6.8 | ≤30 |
| 15 | ≥1.78 | ≤11.0 | ≥35.0 | ≥70.0 | ≥40.0 | ≤5.5 | ≤30 |
| 15 | ≥1.85 | ≤15.0 | ≥40.0 | ≥80.0 | ≥46.0 | ≤4.8 | ≤30 |
| 8 | ≥1.8 | ≤14.0 | ≥50.0 | ≥110.0 | ≥60.0 | ≤5.9 | ≤30 |
| 8 | ≥1.85 | ≤14.0 | ≥58.0 | ≥130.0 | ≥68.0 | ≤5.9 | ≤30 |
| 6 | ≥1.89 | ≤14.0 | ≥68.0 | ≥150.0 | ≥70.0 | ≤5.9 | ≤30 |
| 20 | ≥1.80 | ≤13.0 | ≥45.0 | ≥90.0 | ≥60.0 | ≤4.7 | ≤30 |
| 10 | ≥1.67 | ≤15.0 | ≥36.0 | ≥78.0 | ≥58.0 | ≤5.8 | ≤30 |
| 15 | ≥1.72 | ≤15.0 | ≥50.0 | ≥100.0 | ≥57.0 | ≤5.8 | ≤30 |
| 12 | ≥1.78 | ≤17.0 | ≥52.0 | ≥102.0 | ≥60.0 | ≤6.0 | ≤30 |
Customization is available,For more models, Please contact by instant Message or e-Mail.
Shijiazhuang Nalai Biotechnology Co., Ltd Provide high quality Graphite electrode, Graphite electrode mainly petroleum
coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading, molding, baking and graphitization,
machining, made of, can be divided into ordinary power, high power and high power, mainly used in steel smelting electric arc furnace and refining furnace smelting furnace, electric furnace steelmaking is the use of graphite electrode in furnace to import
he current, strong current in the lower electrode by gas arc discharge, use the heat generated by the arc for smelting.Graphite electrodes of different diameters are used according to the capacity of the electric furnace. For continuous use of the electrodes, the electrodes are connected by the threaded joint of the electrodes. The graphite electrode used in steelmaking accounts for about 70 ~ 80% of the total graphite electrode consumption
If you need, please feel free to contact us. We will provide you with the most competitive price, high quality and excel service.,
etc.
Q: Where can I get product and price information?
A: Send us inquiry e-mail, we will contact with you when we receive your email,or contact me on chat app.
Q: What is the term of the delivery?
A: FOB, CFR, CIF, etc.
Q: How to delivery the goods?
A: We deliver the goods by truck to port, or loading in container in factory.
A: We deliver the goods by truck to port, or loading in container in factory.
Q: Are you trading company or factory?

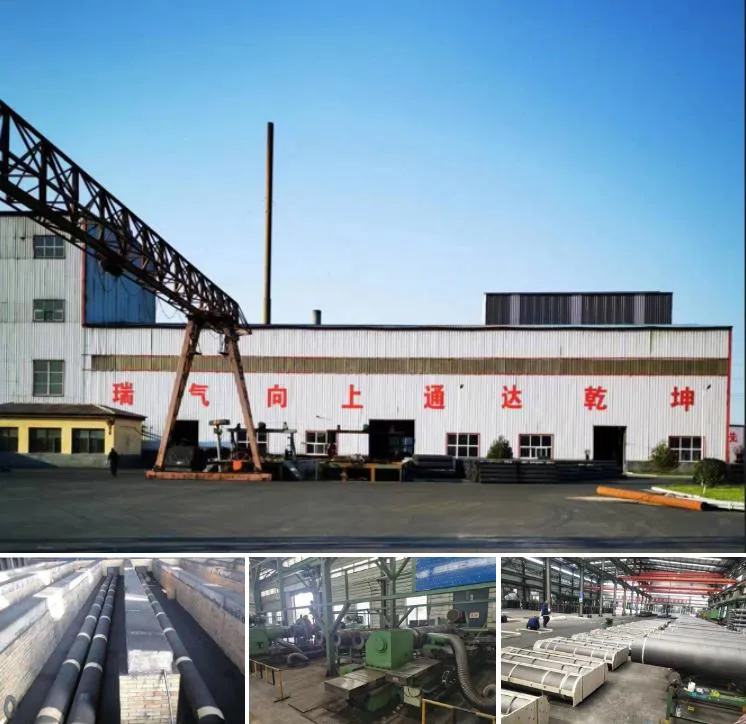

A: We are direct factory and have the most advanced machine and about 100 employee in our 18000m2 workshop.
Q: What's the minimum order quantity?
A: 20tons, one 20' fcl.
Q: What's the delivery time?
A: 2-3 weeks after got the deposit.
Competitive price and high quality products, when we get your inquiry, we will come back to you at the first time.
