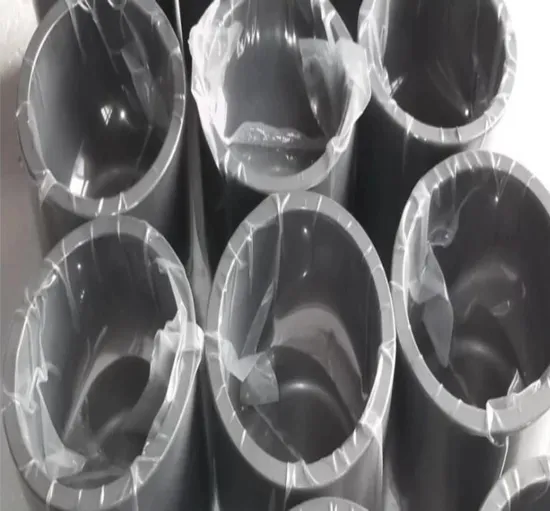

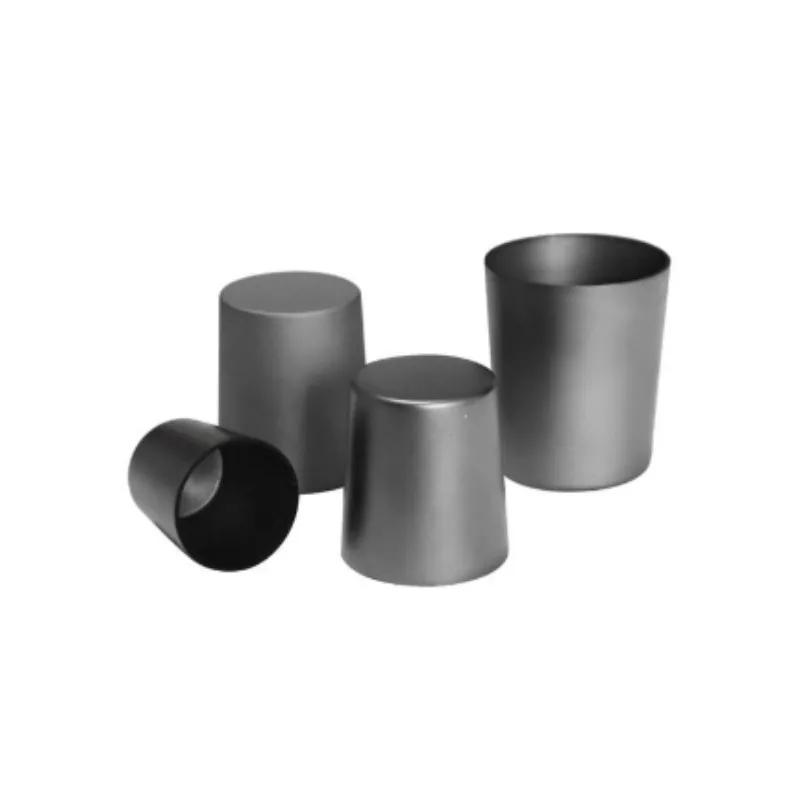

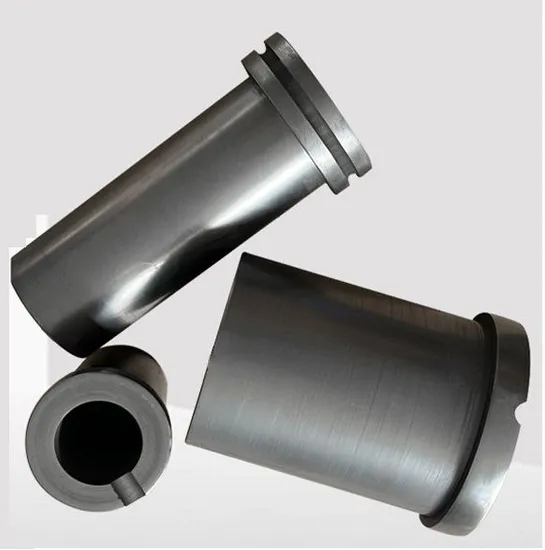

99% High Purity Carbon Graphite Crucible for Metal Melting Refining Furnace
99% High Purity Carbon Graphite Crucible for Metal Melting Refining Furnace
PDF Download
Contact Us Now
Product Description
- Overview
- FAQ
Basic Info.
Model NO.
Graphite Crucible
Refractoriness (ºC)
Refractoriness> 2000
Flexural Strength
38-60 MPa
Compressive Strength
65-135 MPa
Sample
Available
Shape
Cylindrical
Density
1.78-1.85 g/cm3
Carbon Content
High-Carbon
Diameter
Custom
Transport Package
Wooden Cases (Plywood)
Specification
Customize
Trademark
Nalai
Origin
China
Production Capacity
3000 Tons/Month

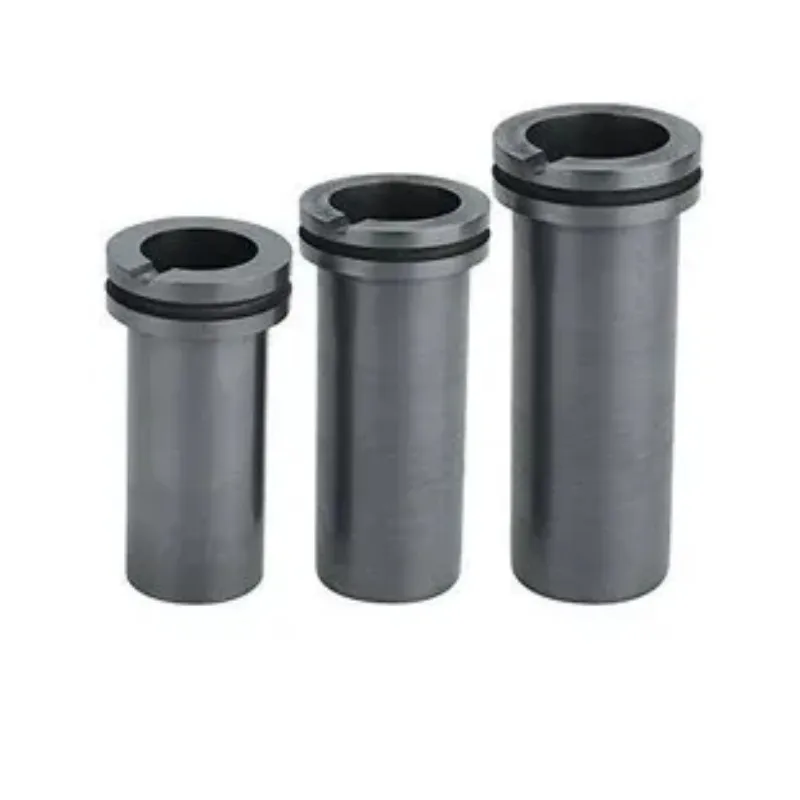

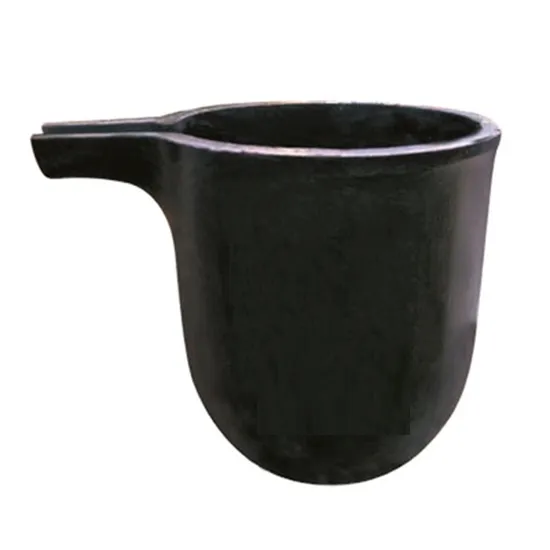

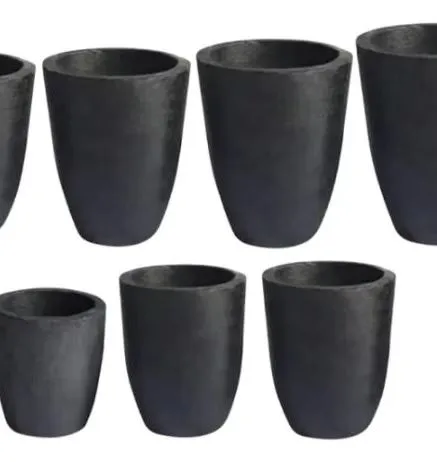

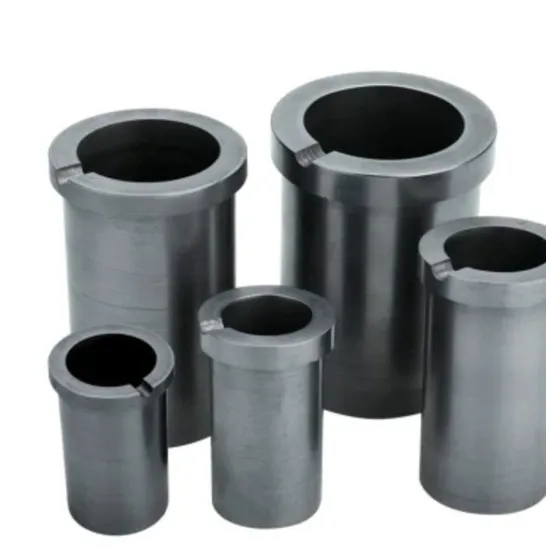

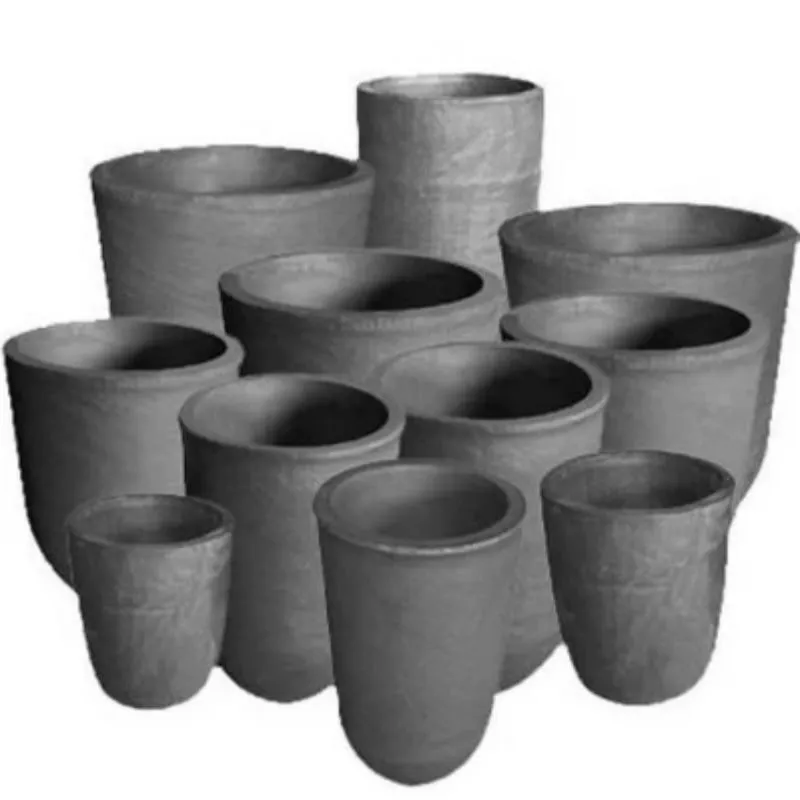

Product Description
Graphite crucible, also known as molten copper bag, molten copper, etc., refers to a kind of crucible made of graphite, clay, silica and wax stone as raw materials.
Graphite crucible is mainly used to melt non-ferrous metals such as copper, brass, gold, silver, zinc and lead and their alloys.
feature
1. High temperature resistance
2. Strong thermal conductivity
3. Good corrosion resistance
4. Long life
Specification
| Item | Density | Porosity% | Compressive Strength | Breaking Strength | Resistivity | Ash Content | μm |
| g/cm3 | MPa | MPa | μm | % | Particles | ||
| ≥ | ≥ | ≥ | ≤ | ≤ | |||
| 1 | 1.7 | 15 | 40 | 20 | 10 | 0.01 | 32 |
| 2 | 1.75 | 15 | 55 | 27 | 10 | 0.01 | 32 |
| 3 | 1.77 | 15 | 58 | 28 | 10 | 0.01 | 32 |
| 4 | 1.8 | 15 | 65 | 30 | 10 | 0.01 | 32 |
| 5 | 1.82 | 15 | 68 | 33 | 10 | 0.01 | 32 |
| 6 | 1.58 | 15 | 78 | 40 | 10 | 0.01 | 32 |
| 7 | 1.88 | 15 | 83 | 42 | 10 | 0.01 | 32 |
| 8 | 1.9 | 15 | 84 | 44 | 10 | 0.01 | 32 |
Customization is available,For more models, Please contact by instant Message or e-Mail.

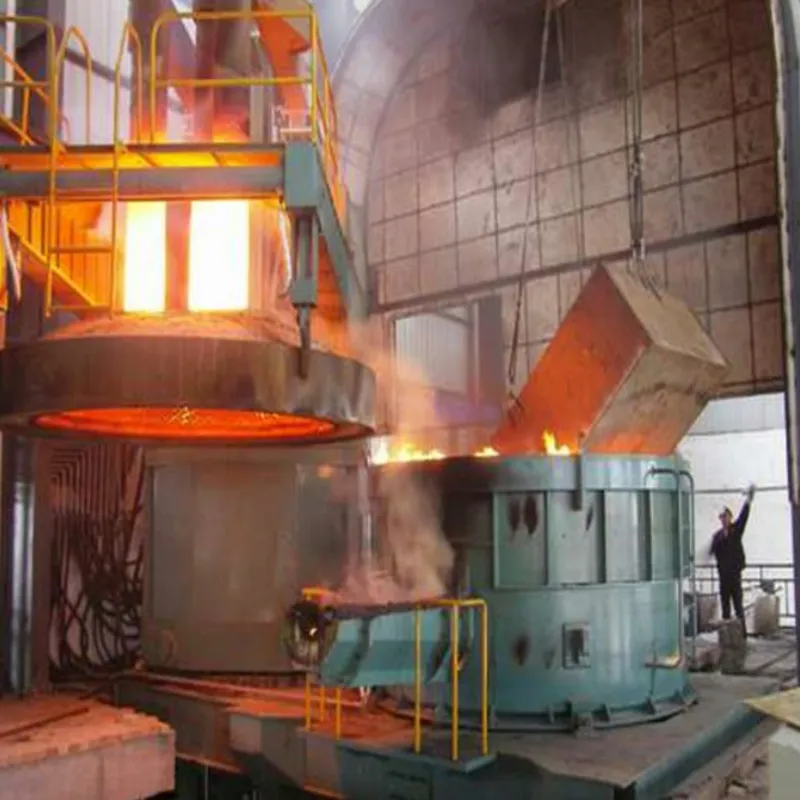

Application
1. Graphite crucible can be used for non-ferrous metal smelting and casting, melting aluminum, dissolving gold or silver ornaments, analysis of special type steel, sintering hard metal.
2. Graphite crucible for smelting gold is specialized in melting gold in headgear and jewelry industry. That requests graphite material has high density and purity, ablation-resistance, and it can be used many times. We can machine various crucibles according to customer's requirement.

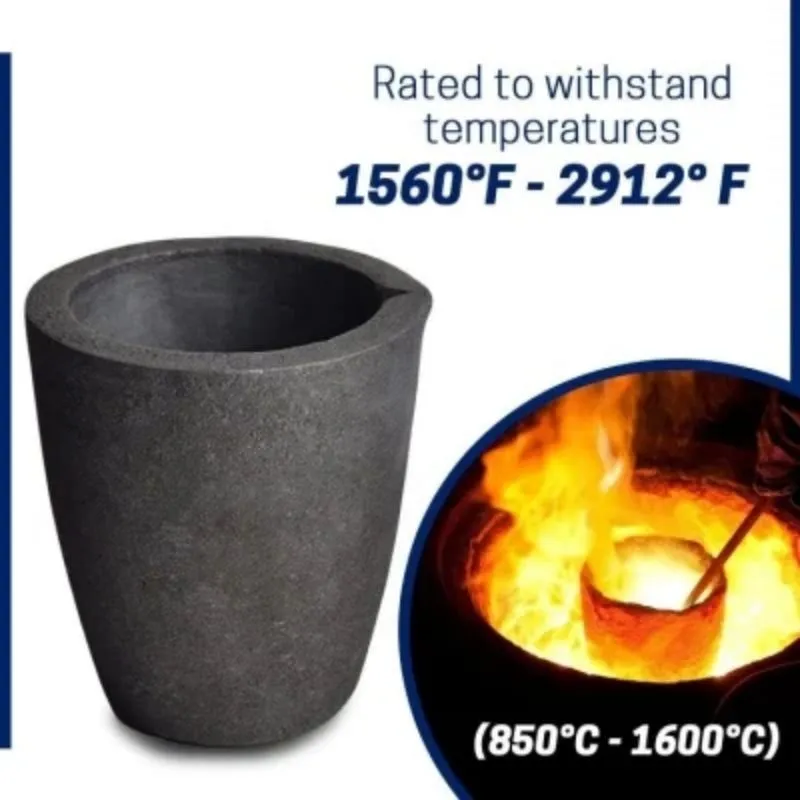

3. Machined from high pure graphite and widely used in the gold,silver,platinum and other noble metal's melting.If it's used in oxygen atmosphere,it will start to be oxygenized when the temperature is higher than 700-800°c. If it's used in the protective atmosphere, it can stand more than 2000°c.
4. Widely used in such fields as industrial furnaces, mono-crystalline silicon machinery, mono-crystalline silicon machinery, electron, semi-conductor, metallurgy, oil, chemistry, textile, electrical machinery, electrical equipment, electrical furnace, traffic, communication industry, medicine, etc.

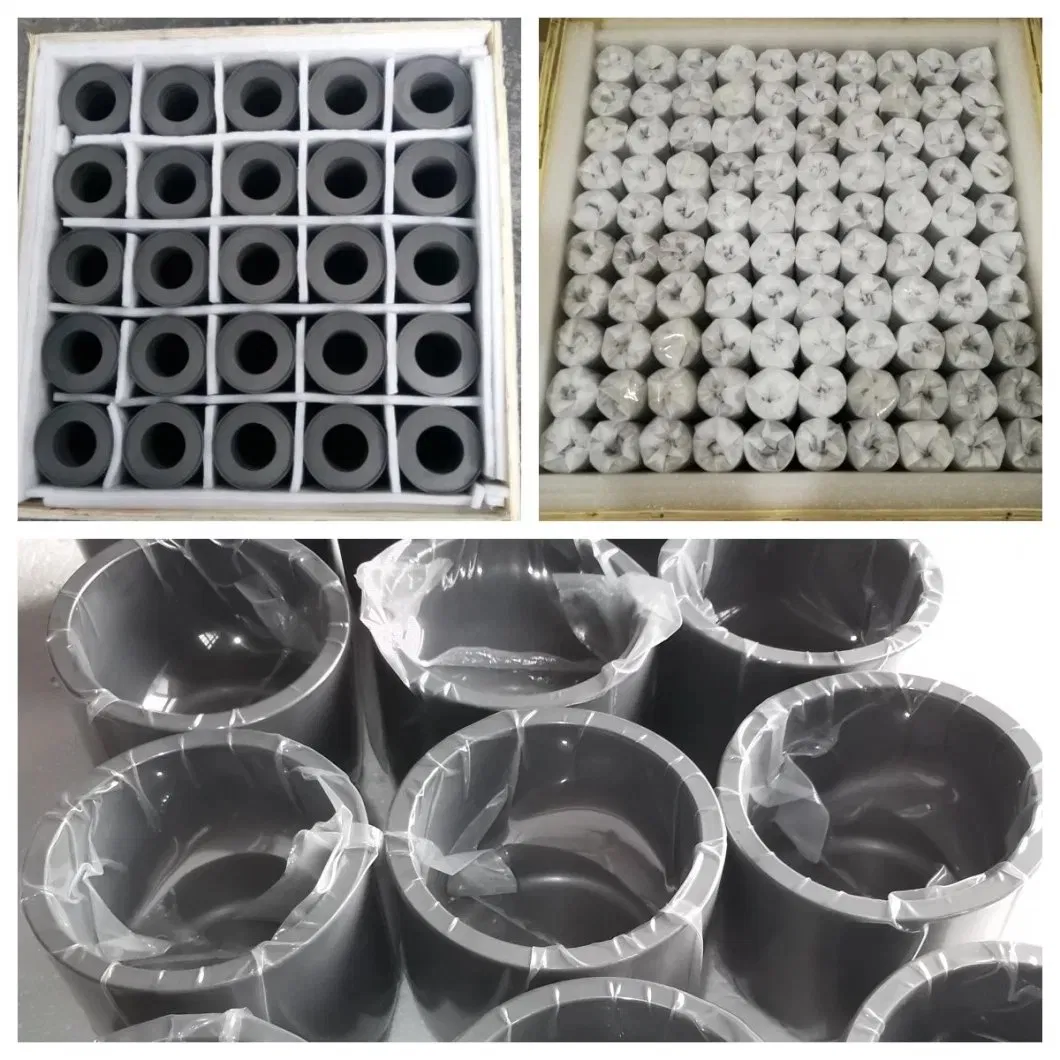

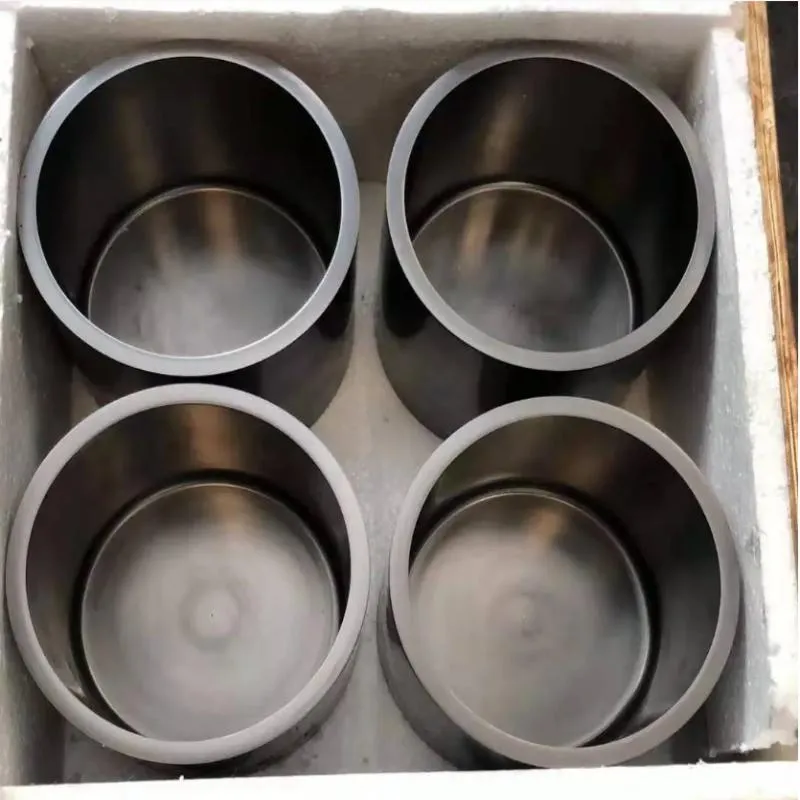

Packing
Certificate

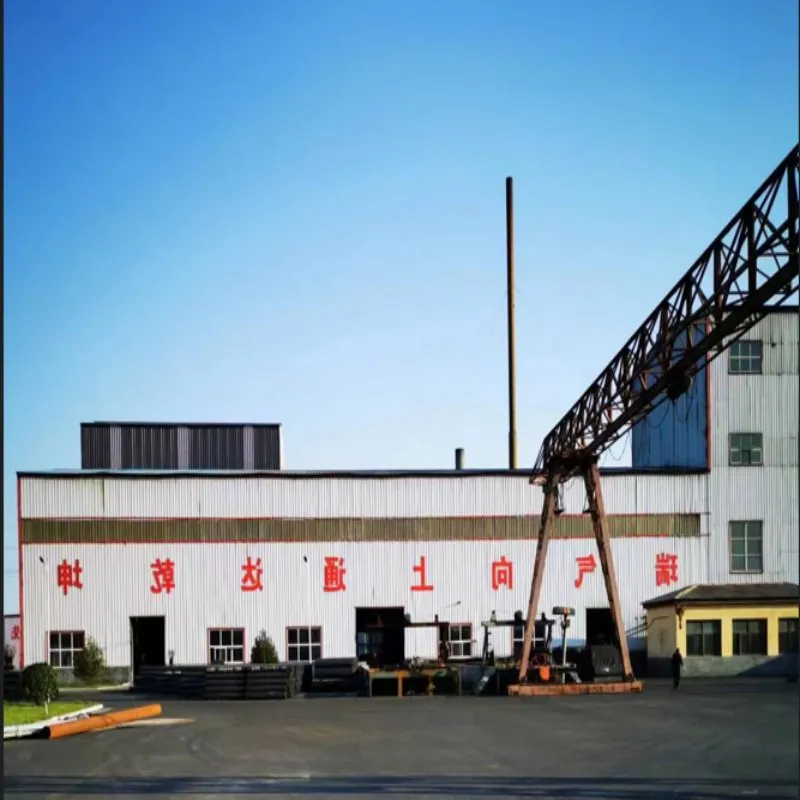

Shijiazhuang Nalai Biotechnology Co., Ltd
1.Specialized in making graphite products.
2.Main products: graphite block, graphite plate, graphite rod, graphite tube, graphite mold, graphite crucible, graphite rotor&shaft, graphite sealing, graphite felt, carbon vane,Carburizing agent, ect.

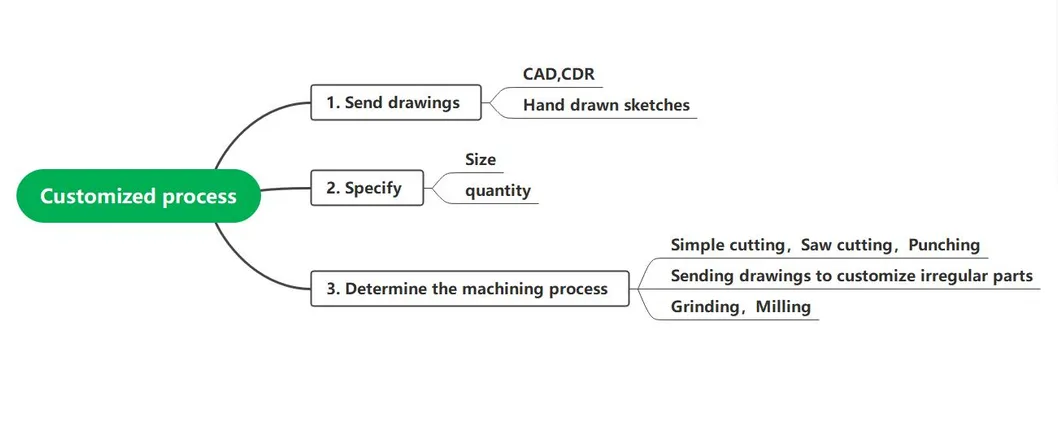

3.In addition to product manufacturing, we also provide customized services.
We look forward to establishing long-term and stable cooperative relations with more customers and creating a better future together!
If you need anything, please feel free to contact us.
Q: Where can I get product and price information?
A: Send us inquiry e-mail, we will contact with you when we receive your email,or contact me on chat app.
Q: What is the term of the delivery?
A: FOB, CFR, CIF, etc.
Q: How to delivery the goods?
A: We deliver the goods by truck to port, or loading in container in factory.
A: We deliver the goods by truck to port, or loading in container in factory.
Q: Are you trading company or factory?
A: We are direct factory and have the most advanced machine and about 100 employee in our 18000m2 workshop.
Q: What's the minimum order quantity?
A:1ton.
Q: What's the delivery time?
A: 2-3 weeks after got the deposit.
Competitive price and high quality products, when we get your inquiry, our team will get back to you within 24 hours.
