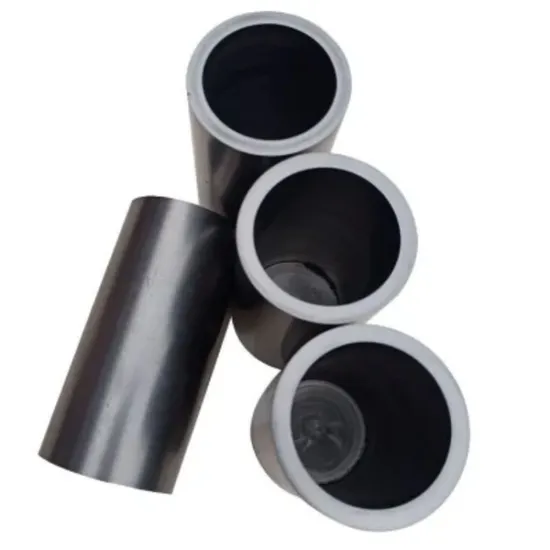

Different Types Graphite Crucible Cup for Melting Metal
- Overview
- FAQ
Basic Info.
Product Description

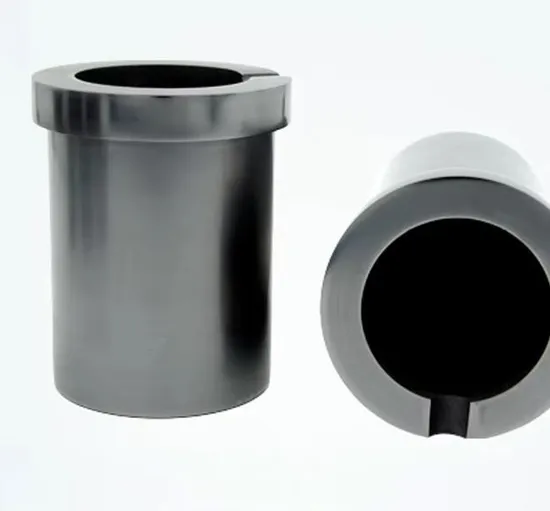

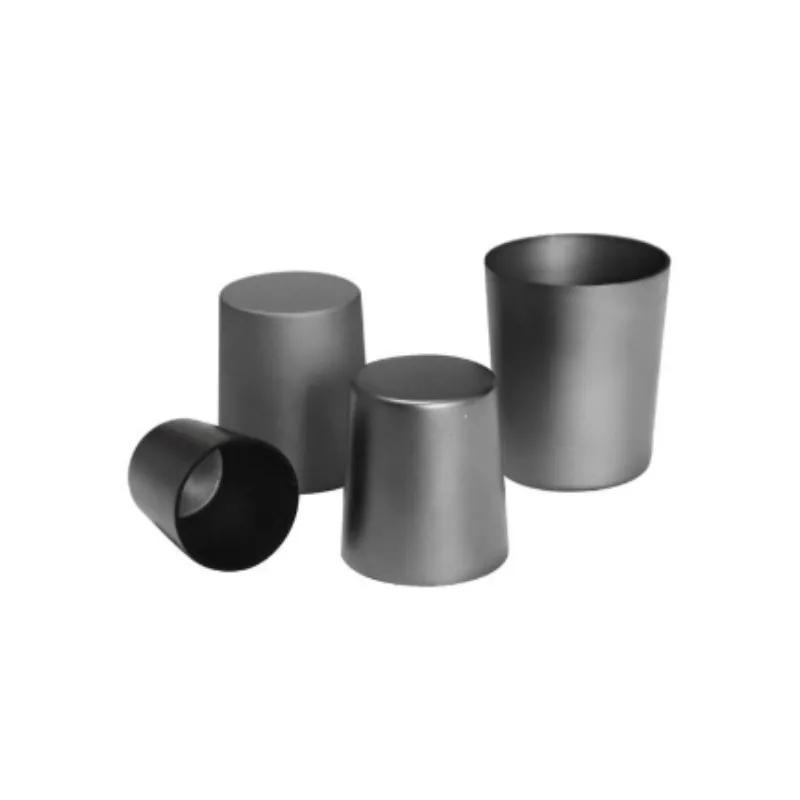

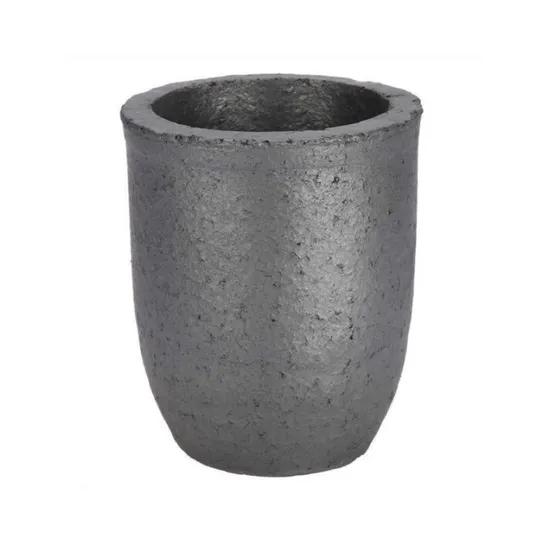

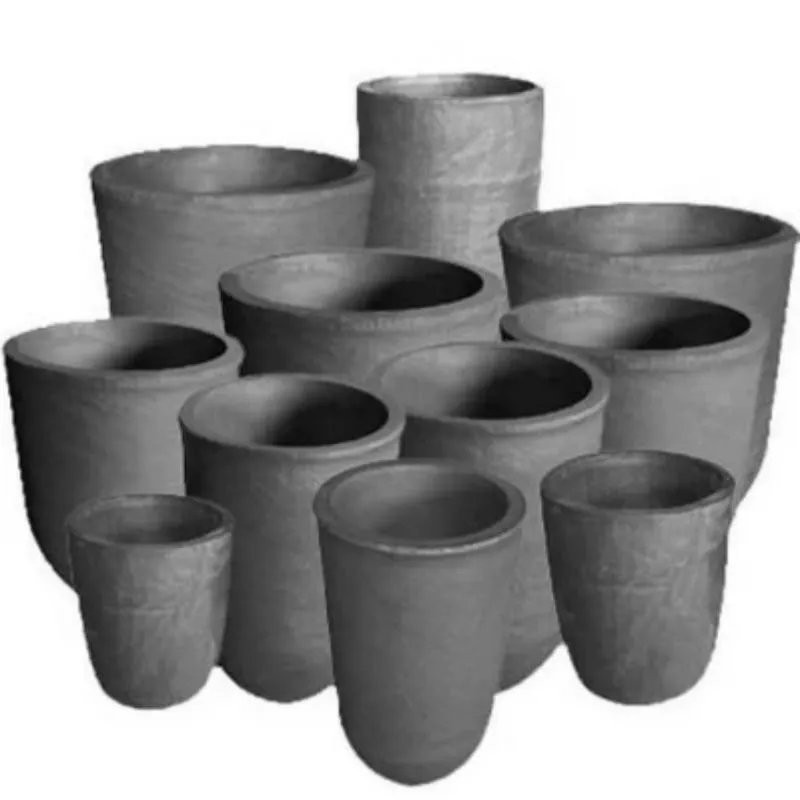

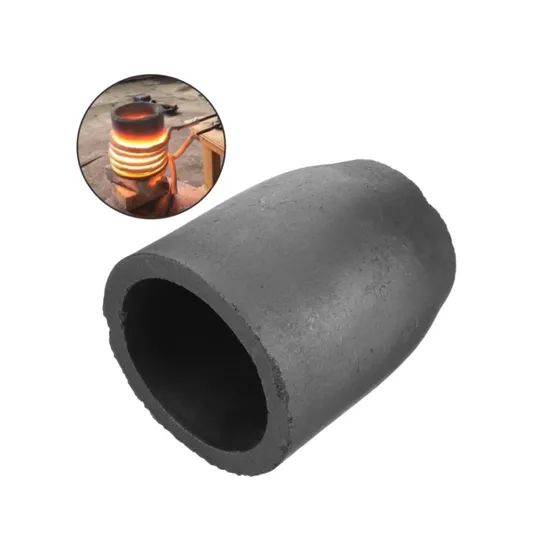

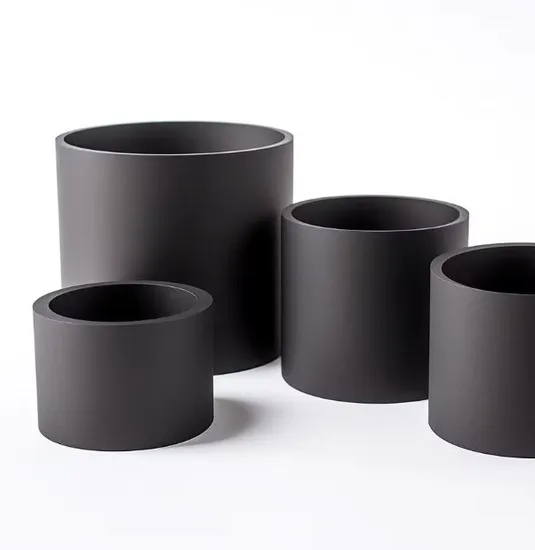

Graphite crucible, also known as molten copper bag, molten copper, etc., refers to a kind of crucible made of graphite, clay, silica and wax stone as raw materials.
Graphite crucible is mainly used to melt non-ferrous metals such as copper, brass, gold, silver, zinc and lead and their alloys.
feature
1. High temperature resistance
2. Strong thermal conductivity
3. Good corrosion resistance
4. Long life
Specification
| Item | Density | Porosity% | Compressive Strength | Breaking Strength | Resistivity | Ash Content | μm |
| g/cm3 | MPa | MPa | μm | % | Particles | ||
| ≥ | ≥ | ≥ | ≤ | ≤ | |||
| 1 | 1.7 | 15 | 40 | 20 | 10 | 0.01 | 32 |
| 2 | 1.75 | 15 | 55 | 27 | 10 | 0.01 | 32 |
| 3 | 1.77 | 15 | 58 | 28 | 10 | 0.01 | 32 |
| 4 | 1.8 | 15 | 65 | 30 | 10 | 0.01 | 32 |
| 5 | 1.82 | 15 | 68 | 33 | 10 | 0.01 | 32 |
| 6 | 1.58 | 15 | 78 | 40 | 10 | 0.01 | 32 |
| 7 | 1.88 | 15 | 83 | 42 | 10 | 0.01 | 32 |
| 8 | 1.9 | 15 | 84 | 44 | 10 | 0.01 | 32 |
Application
1. Graphite crucible can be used for non-ferrous metal smelting and casting, melting aluminum, dissolving gold or silver ornaments, analysis of special type steel, sintering hard metal.

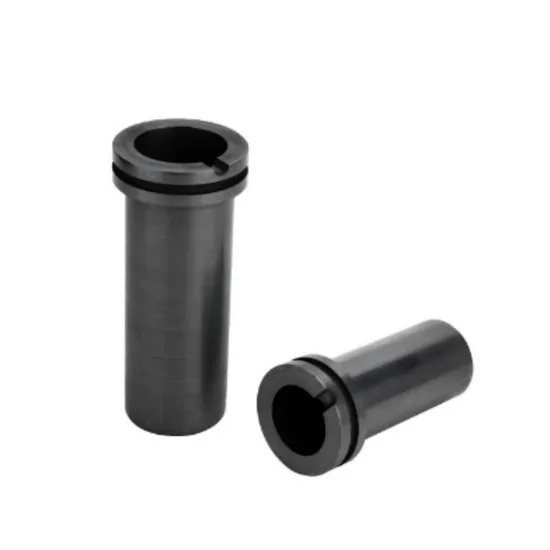

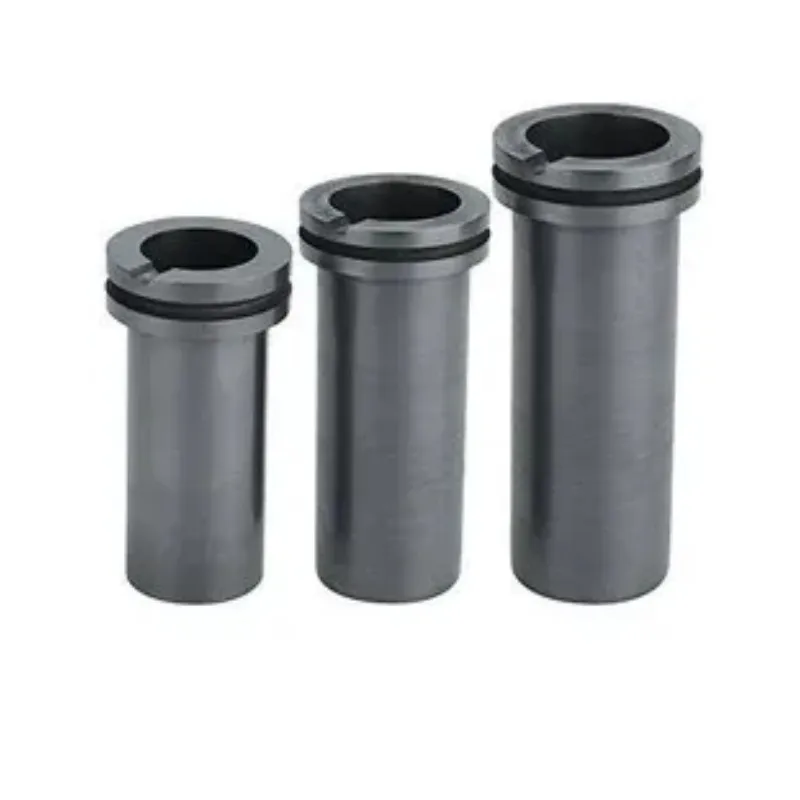

2. Graphite crucible for smelting gold is specialized in melting gold in headgear and jewelry industry. That requests graphite material has high density and purity, ablation-resistance, and it can be used many times. We can machine various crucibles according to customer's requirement.

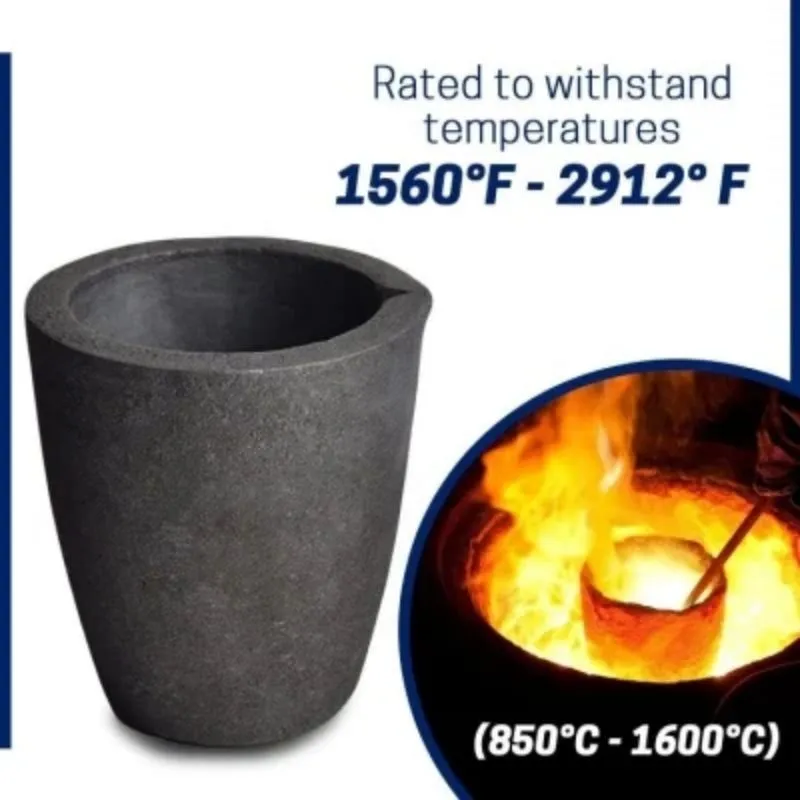

3. Machined from high pure graphite and widely used in the gold,silver,platinum and other noble metal's melting.If it's used in oxygen atmosphere,it will start to be oxygenized when the temperature is higher than 700-800°c. If it's used in the protective atmosphere, it can stand more than 2000°c.

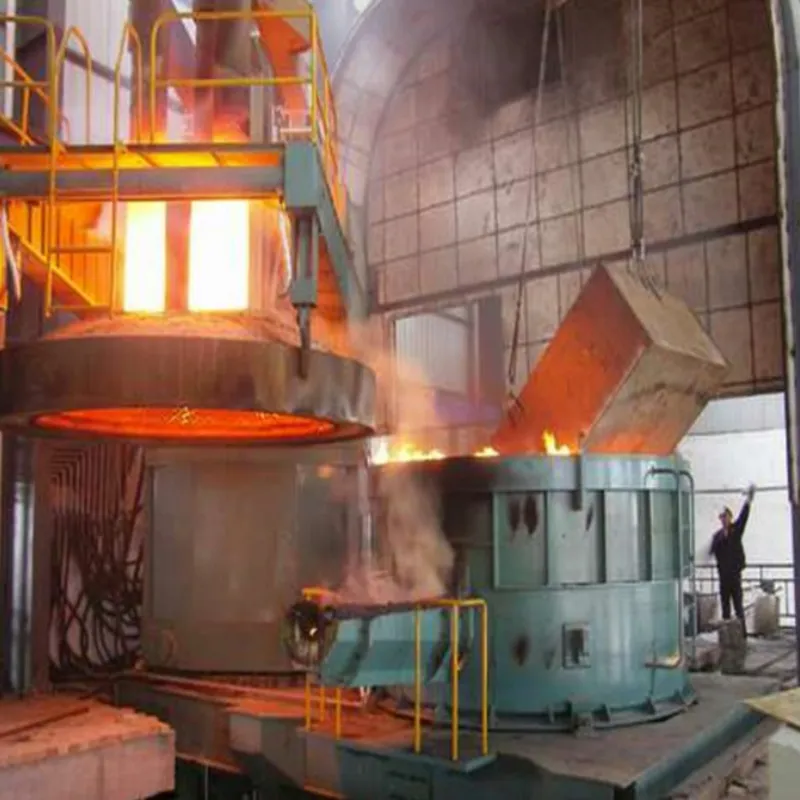

4. Widely used in such fields as industrial furnaces, mono-crystalline silicon machinery, mono-crystalline silicon machinery, electron, semi-conductor, metallurgy, oil, chemistry, textile, electrical machinery, electrical equipment, electrical furnace, traffic, communication industry, medicine, etc.

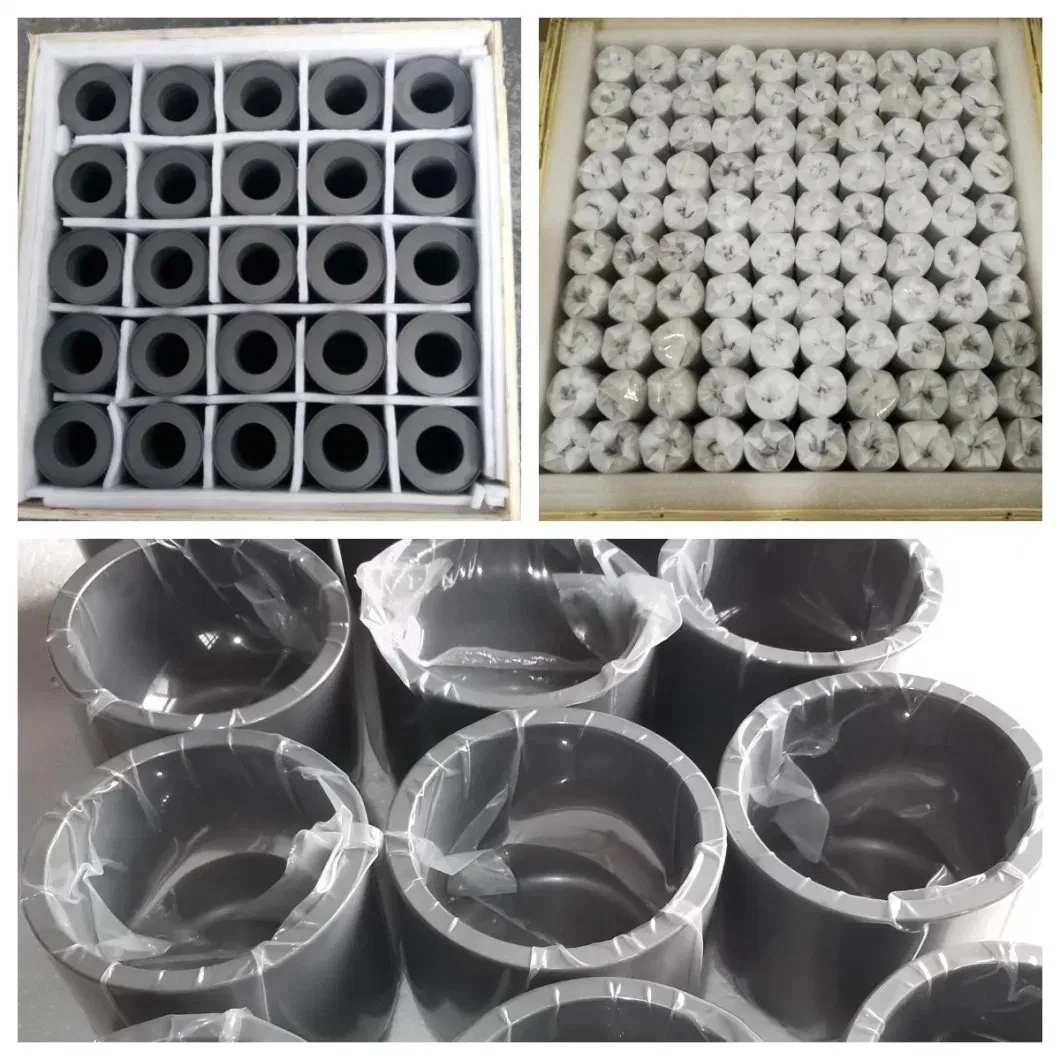

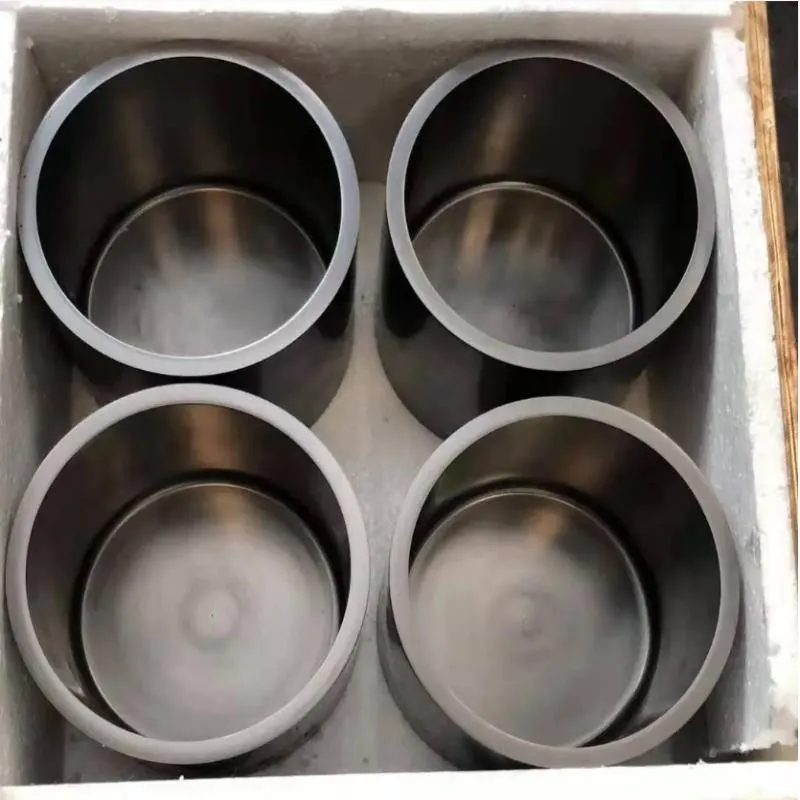

Packing
Certificate

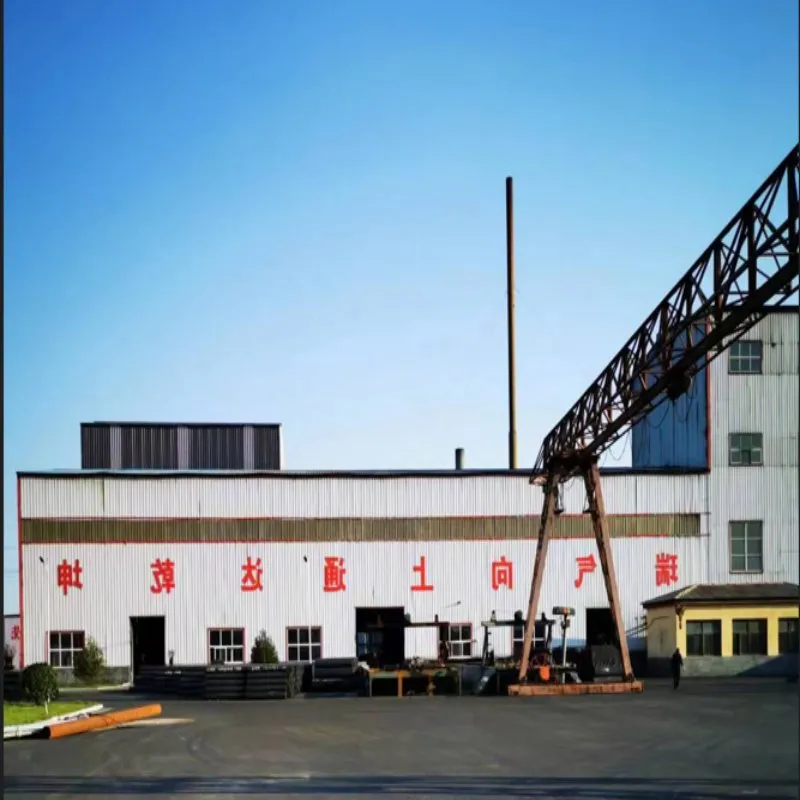

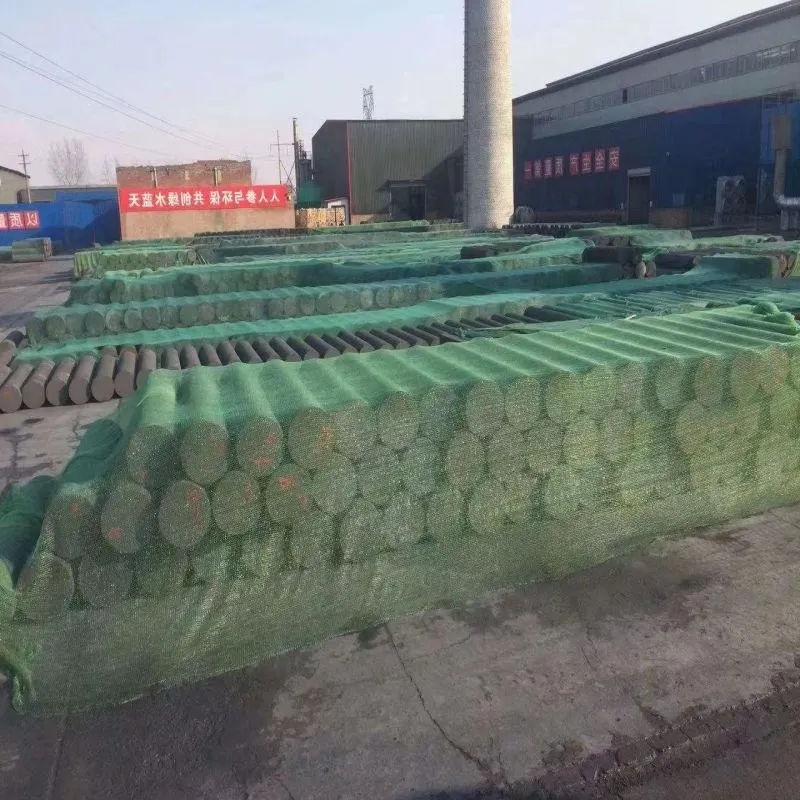

Factory&Workshop
Shijiazhuang Nalai Biotechnology Co., Ltd
1.Specialized in making graphite products.

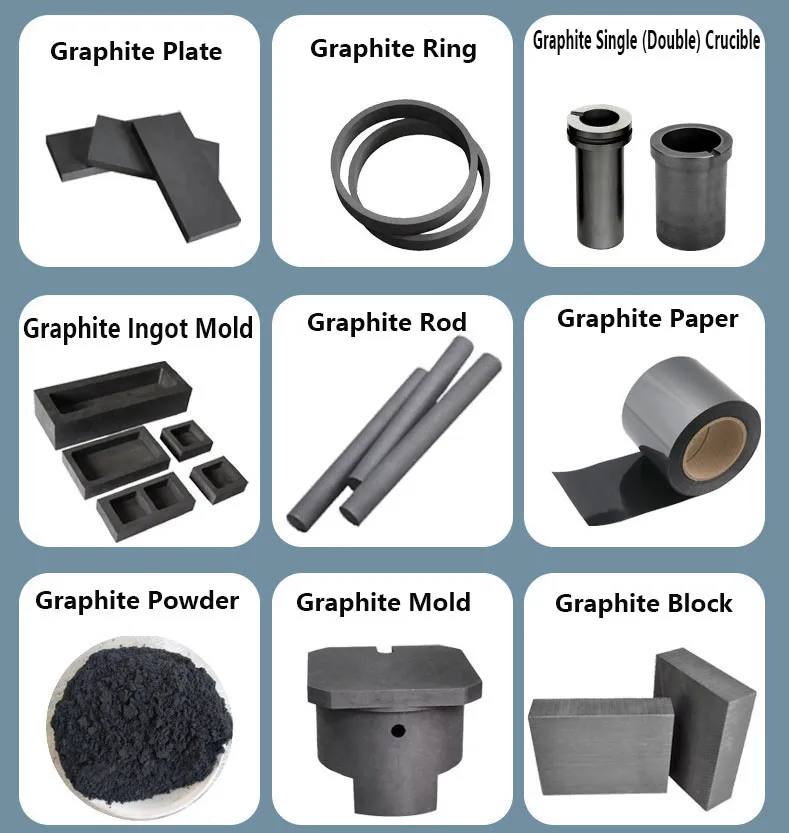

2.Main products: graphite block, graphite plate, graphite rod, graphite tube, graphite mold, graphite crucible, graphite rotor&shaft, graphite sealing, graphite felt, carbon vane,Carburizing agent, ect.
3.In addition to product manufacturing, we also provide customized services.
We look forward to establishing long-term and stable cooperative relations with more customers and creating a better future together!
If you need anything, please feel free to contact us.
