Understanding the Global Landscape of Graphite Electrode Manufacturing

The global steel and metallurgical industries rely heavily on the performance and consistency of graphite electrodes. These critical components facilitate the immense heat required in Electric Arc Furnaces (EAFs) and Ladle Furnaces (LFs), which are pivotal in steel recycling and primary steel production. As demand for high-quality, sustainable steel continues to grow, so does the imperative for advanced graphite electrode manufacturers in world to innovate and scale production. This article delves into the intricacies of graphite electrode production, highlighting technical parameters, application advantages, and what sets leading suppliers apart. The focus is on Ultra-High Power (UHP) and High Power (HP) graphite electrodes, vital for modern, efficient steelmaking processes, ensuring high current density and minimal consumption.

The market for graphite electrodes is characterized by continuous innovation in material science and manufacturing processes, driven by the need for higher purity, lower resistivity, and superior thermal shock resistance. These advancements directly translate into improved furnace efficiency, reduced energy consumption, and lower operational costs for steel producers. Furthermore, the increasing global emphasis on environmental sustainability has prompted manufacturers to explore more eco-friendly production methods and products with extended service lives, thereby minimizing waste and carbon footprint in the metallurgical supply chain. Understanding these underlying trends is crucial for any stakeholder in the steel industry.

The Advanced Manufacturing Process of Graphite Electrodes

The production of HP and UHP graphite electrodes is a complex, multi-stage process demanding meticulous control and specialized equipment. It begins with the selection of premium raw materials, primarily needle coke (petroleum coke and coal tar pitch coke), which forms the backbone of the electrode's structural integrity and electrical conductivity. This material is chosen for its low impurities and excellent graphitization properties. The manufacturing process broadly involves several critical steps:

• Calcining: Raw needle coke is heated to high temperatures (1200-1350°C) to remove volatile matter and improve its density and electrical conductivity, preparing it for subsequent processing.
• Crushing and Sieving: The calcined coke is crushed into specific particle sizes and sieved to ensure precise aggregate distribution, which is crucial for achieving desired density and homogeneity in the final product.
• Mixing and Kneading: Sized coke particles are mixed with a binding agent, typically coal tar pitch, in precise ratios under elevated temperatures. This mixture is then kneaded to create a uniform, plastic mass.
• Extrusion: The plastic mixture is extruded through a die to form green electrodes of various diameters. This process aligns the coke particles, imparting desirable anisotropic properties. Modern graphite electrode manufacturers utilize advanced extrusion presses for consistent quality.
• Baking (Carbonization): The green electrodes are baked in specialized furnaces at temperatures up to 800-1000°C over several weeks. This step carbonizes the pitch binder, transforming it into a solid carbon matrix, and increases the mechanical strength and electrical resistance.
• Pitch Impregnation: To enhance density, strength, and conductivity, electrodes often undergo one or more impregnation steps with impregnating pitch, followed by re-baking. This fills pores created during carbonization.
• Graphitization: This is the most crucial step, involving heating the electrodes to extremely high temperatures (2500-3000°C) in an Acheson furnace. This process transforms the amorphous carbon into crystalline graphite, dramatically improving electrical conductivity, thermal shock resistance, and purity.
• Machining (CNC Processing): After graphitization, electrodes are precision-machined using CNC equipment to create accurate dimensions, thread ends for nipples, and ensure smooth surfaces for optimal electrical contact and assembly.
• Inspection and Quality Control: Throughout the entire process, rigorous quality control checks are performed. This includes density measurements, resistivity tests, flexural strength tests, and dimensional inspections, ensuring compliance with international standards such as ISO 6365-1980 and ANSI/UL standards for electrical applications. These stringent controls ensure the longevity and reliable performance of the product in demanding applications like electric arc furnaces.

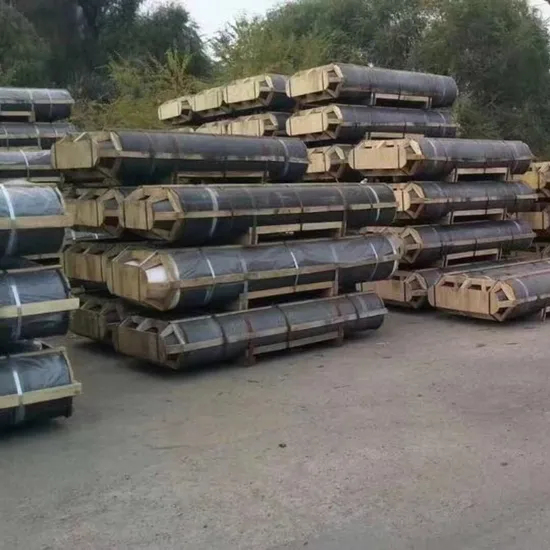

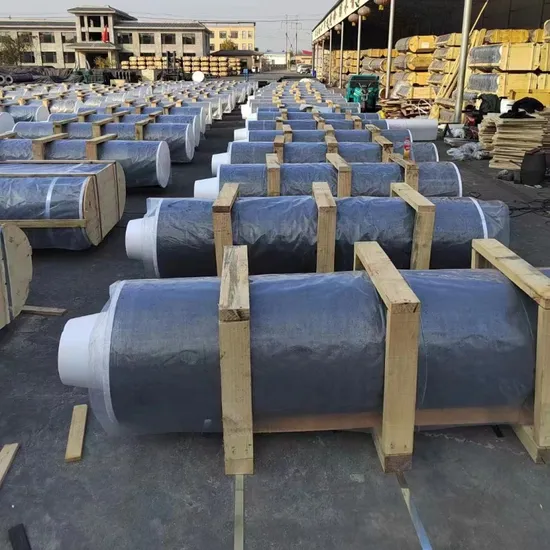

The final products, such as the Hot Sale HP & UHP Graphite Electrode with Nipples, offer significant advantages in various industries, including metallurgy and petrochemicals. Their high electrical conductivity minimizes energy loss (energy saving) during arc formation, while their robust material composition and precise manufacturing reduce wear and corrosion, extending service life even in harsh, corrosive environments. This meticulous process ensures the quality and performance that top graphite electrode manufacturers are known for, directly impacting the operational efficiency and cost-effectiveness for end-users.

Technical Specifications and Performance Parameters

Selecting the right graphite electrode hinges on understanding key technical parameters that define its performance in specific applications. HP and UHP electrodes are distinguished by their superior properties designed for high current densities and demanding operational conditions. Below is a table outlining typical specifications for these advanced electrodes:

Lower resistivity in UHP electrodes allows for higher current carrying capacity without excessive heat generation, minimizing energy loss. Higher bulk density contributes to reduced consumption rates, as there is less void space for oxidation. Elevated flexural strength and lower CTE ensure superior resistance to thermal shock and mechanical stresses encountered during EAF operations, leading to fewer breakages and longer service life. These precise properties are what make edm graphite suppliers distinct in their ability to cater to high-precision and high-performance applications beyond traditional steelmaking, such as electrical discharge machining. The meticulous balance of these parameters is what distinguishes the quality of graphite electrode manufacturers in world and ensures optimal furnace performance.

Applications and Strategic Advantages

Graphite electrodes are indispensable in a myriad of industrial sectors beyond just primary steel production. Their unique properties, including excellent electrical conductivity, high thermal shock resistance, and chemical inertness, make them suitable for diverse high-temperature and corrosive environments. Key application scenarios include:

• Metallurgical Industry: Predominantly used in Electric Arc Furnaces (EAFs) for scrap steel melting and Ladle Furnaces (LFs) for refining steel. Also vital in submerged arc furnaces for producing ferroalloys and other specialty metals.
• Petrochemical Industry: Employed in various high-temperature applications requiring carbon-based materials, such as the production of phosphorus, silicon, and other non-ferrous metals, where chemical stability and thermal resilience are paramount.
• Chemical Processing: Used in electrolytic cells for producing certain chemicals where their electrical conductivity and corrosion resistance are beneficial.
• Water Treatment (Electrode-based systems): Although less common for large-scale graphite electrodes, specialized graphite components can be found in some advanced electrochemical water treatment systems for purification and disinfection.

The strategic advantages of utilizing high-quality HP and UHP graphite electrodes are multifaceted. For steel mills, the most significant benefits include enhanced productivity due to faster melting rates, substantial energy savings owing to lower electrical resistance and reduced arc instability, and significant cost reductions through decreased electrode consumption rates. Furthermore, the robust construction of these electrodes minimizes downtime associated with electrode breakage and replacement, improving overall operational efficiency and safety. Reputable graphite electrode manufacturers often provide products that meet or exceed ISO and ANSI standards, ensuring reliability and compatibility with international furnace designs. This commitment to quality directly translates into superior performance, demonstrating why discerning buyers consistently seek products from established graphite electrode manufacturers.

Customization Solutions and Application Cases

Recognizing that each metallurgical operation presents unique challenges, leading graphite electrode manufacturers offer extensive customization solutions. This includes tailoring electrode diameters, lengths, and nipple configurations to precisely match specific furnace dimensions and operational requirements. Beyond standard HP and UHP grades, some manufacturers can adjust material compositions and processing steps to enhance particular properties, such as further reducing resistivity for extremely high current applications or improving oxidation resistance for furnaces operating in high-oxygen environments. This bespoke approach ensures optimal electrode performance and extends service life, maximizing return on investment for the client.

A prime example of successful customization involves a large steel producer in the Middle East that struggled with high electrode consumption rates due to frequent breakages in their UHP EAFs. After a thorough analysis by a graphite electrode manufacturer, it was determined that the existing electrodes had insufficient flexural strength for the furnace's intense thermal cycling. The manufacturer proposed a custom UHP electrode with enhanced flexural strength and a modified nipple design to improve joint integrity. Upon implementation, the client reported a 15% reduction in electrode consumption and a significant decrease in unplanned downtime over six months, leading to substantial operational savings. Such real-world performance data underscores the value of partnering with experienced edm graphite suppliers who can provide tailored solutions.

FAQ: Your Questions Answered by Graphite Electrode Experts

What is the primary difference between HP and UHP graphite electrodes?

The key distinction lies in their physical properties and intended applications. UHP (Ultra-High Power) electrodes are designed for Electric Arc Furnaces (EAFs) operating at extremely high current densities, offering significantly lower resistivity, higher bulk density, and superior flexural strength compared to HP (High Power) electrodes. This allows UHP electrodes to handle more demanding electrical loads and thermal stresses, leading to faster melting times and lower consumption rates in modern, high-efficiency furnaces. HP electrodes are suitable for furnaces with moderate power inputs. The manufacturing process for UHP electrodes involves more stringent raw material selection and more intensive graphitization to achieve these enhanced properties, making them more expensive but also more efficient in specific high-power operations.

How does electrode consumption impact steel production costs?

Electrode consumption is a major operational cost in EAF steelmaking, typically accounting for a significant portion of the total conversion cost. Higher consumption rates directly translate to increased expenditure on electrodes, frequent electrode replacements leading to furnace downtime, and additional labor costs. Efficient electrodes with lower consumption rates, offered by leading graphite electrode manufacturers, contribute significantly to reducing per-ton steel costs, improving profitability, and enhancing overall furnace productivity. Factors influencing consumption include electrode quality, furnace operational parameters (e.g., current density, arc length), charge material quality, and operational consistency.

What international standards should I look for when sourcing graphite electrodes?

Reputable graphite electrode manufacturers adhere to international quality and performance standards to ensure product reliability and compatibility. Key standards include ISO 6365 for dimensions and tolerances, as well as various national standards like ANSI (American National Standards Institute) for specific electrical and mechanical properties. Certification with ISO 9001 (Quality Management System) is also a strong indicator of a manufacturer's commitment to consistent quality and process control. Always request product data sheets and certifications to verify compliance with these critical benchmarks.

Ensuring Trustworthiness: Delivery, Warranty, and Customer Support

Beyond product specifications, the reliability of a graphite electrode manufacturer is significantly defined by its commitment to customer service, transparent delivery processes, and robust warranty policies. Timely delivery is crucial for uninterrupted steel production, minimizing costly downtime. Leading manufacturers provide clear communication regarding lead times, which typically range from 4 to 8 weeks depending on the order size, customization requirements, and current production schedules. They often leverage global logistics networks to ensure efficient and secure shipment to client sites worldwide.

A strong warranty commitment reflects a manufacturer's confidence in its product quality. This typically covers manufacturing defects and significant deviations from agreed-upon specifications, ensuring peace of mind for buyers. Comprehensive customer support, including technical assistance, on-site problem-solving, and post-sales service, is also paramount. This level of support ensures that any operational issues or performance queries are addressed promptly by experienced engineers, maximizing the efficiency and lifespan of the electrodes. Partnering with graphite electrode manufacturers who prioritize these aspects significantly reduces operational risks and fosters long-term, trust-based relationships.

Conclusion

The selection of the right graphite electrode supplier is a strategic decision for any steel producer or metallurgical plant. It impacts not only operational efficiency and costs but also environmental footprint and overall product quality. By focusing on graphite electrode manufacturers who demonstrate excellence in raw material sourcing, advanced manufacturing processes, adherence to international standards, and a strong commitment to customer support and customization, companies can ensure a reliable supply of high-performance electrodes. The ongoing innovations in HP and UHP electrode technology promise further advancements in efficiency and sustainability for the global metallurgical industry.

References

1. Smith, J. D. (2022). Advances in Graphite Electrode Technology for Electric Arc Furnaces. Journal of Metallurgical Science, 45(3), 112-128.
2. Wang, L., & Chen, G. (2021). Sustainable Manufacturing Practices in the Carbon and Graphite Industry. Industrial Materials Review, 18(2), 65-78.
3. International Organization for Standardization. (ISO 6365:1980). Carbonaceous materials for the production of aluminium -- Prebaked anodes -- Determination of the apparent density, real density and porosity -- Method by mercury pyknometry.
