Premium Graphite Plates for Heat Treatment Solutions
Unlock industrial reliability with our graphite plates for heat treating solutions — collaborative innovation delivering maximum efficiency and robust corrosion prevention across metal, petrochemical, and energy sectors. Explore product specs or request a custom quote.
Industry Outlook 2024: The Growing Demand for Graphite Plates for Heat Treating
The global graphite plates for heat treating market is rapidly expanding, driven by the increasing performance requirements in metallurgy, semiconductor, petrochemical, and new energy applications. According to Grand View Research, graphite's demand is projected to grow at a CAGR of 7.5% through 2028, with synthetic graphite products—such as carbon graphite plates and plates used in fuel cells—witnessing technological upgrades for strength, longevity, and anti-corrosive characteristics.
- Segment Growth: Heat treating and energy (fuel cell) applications lead the demand.
- Key Players: Industrial users in steel, ceramics, lithium-ion, solar, aerospace, and environmental engineering.
- Innovation: CNC processing, high-purity materials, and improved pore structure for higher efficiency and reduced maintenance.
Comprehensive Technical Parameters of Graphite Plates for Heat Treating
| Parameter | Typical Value (Industry Standard) |
Good Quality Graphite Plate View Product |
|---|---|---|
| Raw Material | Synthetic graphite (C content ≥ 99.5%) | High-purity graphite; C > 99.8% |
| Thickness Range | 2–100 mm | 0.5–200 mm |
| Flexural Strength | 25–60 MPa | 48–72 MPa |
| Density | 1.70–1.85 g/cm³ | 1.76–1.90 g/cm³ |
| Thermal Conductivity | 80–150 W/m·K | 110–160 W/m·K |
| Max Operating Temp. | ≈ 2200°C (inert); ≈ 700°C (air) | 2500°C (inert); 800°C (air) |
| Porosity | < 15% | < 13% |
| Surface Finish | Ra < 12µm | Ra < 8µm (CNC Machined) |
| ISO/ANSI Standards | ISO 9001, ANSI/ASTM C561 | ISO 9001:2015, RoHS, Reach |
| Lifespan | 6–36 months (average) | 12–54 months (depending on conditions) |
Manufacturing Process of Graphite Plates for Heat Treating – Step-by-Step Flowchart
1. Material Selection
Use high-purity petroleum coke and pitch; screen for C% & impurity levels.
(ISO/ASTM certified batches)
Use high-purity petroleum coke and pitch; screen for C% & impurity levels.
(ISO/ASTM certified batches)
2. Mixing & Shaping
Blend graphite granules, shape via isostatic/cold/press molding.
Uniform compaction for density control
Blend graphite granules, shape via isostatic/cold/press molding.
Uniform compaction for density control
3. Baking & Calcining
Kiln bake at 800–1200°C;
Calcination removes volatiles.
Enhances crystalline order & strength
Kiln bake at 800–1200°C;
Calcination removes volatiles.
Enhances crystalline order & strength
4. Graphitization
Electric furnace heat to ≥ 2500°C.
Crystallizes carbon, increases conductivity
Electric furnace heat to ≥ 2500°C.
Crystallizes carbon, increases conductivity
5. CNC Machining
Precision cut & surface finish; custom holes, slots, or grooves.
Ra 4–8µm finish
Precision cut & surface finish; custom holes, slots, or grooves.
Ra 4–8µm finish
6. Quality Testing & Coating
Check dimensions, strength, porosity (per ISO 9001, ANSI C561); optional anti-oxidation coating.
Final polish, packaging to customer spec
Check dimensions, strength, porosity (per ISO 9001, ANSI C561); optional anti-oxidation coating.
Final polish, packaging to customer spec
(For a vivid video explanation of this workflow, see:
Graphite Plate Manufacturing Video)

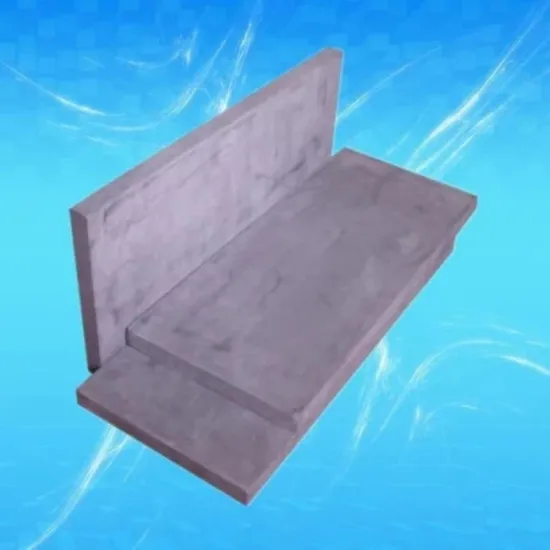

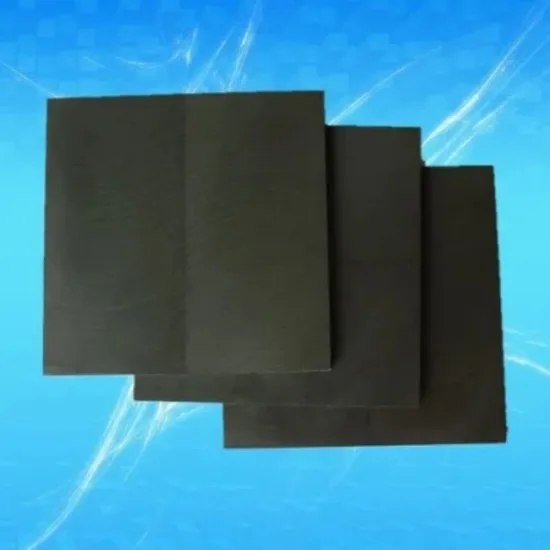

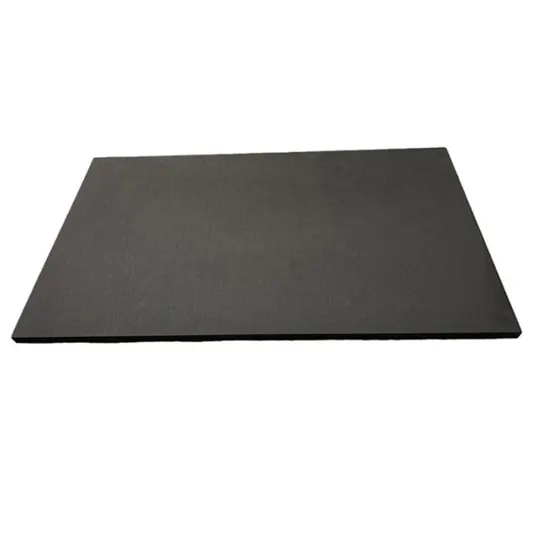

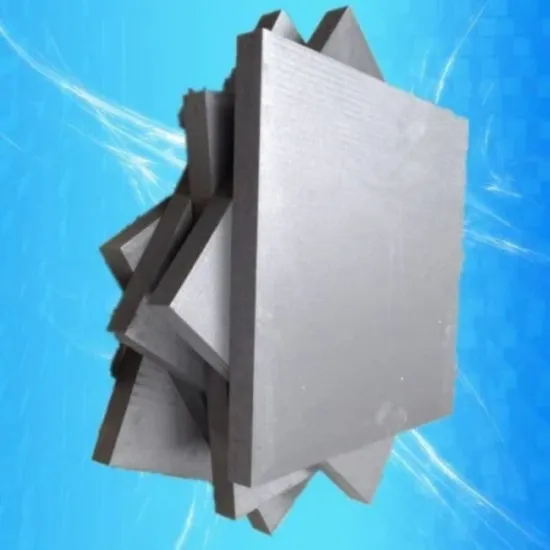

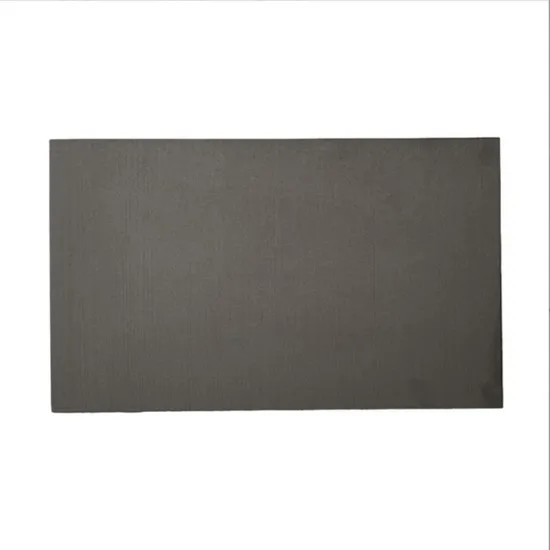

Product Highlight: Good Quality Graphite Sheet Customized Carbon Graphite Plate for Industry
- Material: Isostatic high-purity carbon graphite, purity ≥99.8%.
- Process: Cast, molded, or isostatic compaction; advanced CNC finishing; double-sided polishing (Ra <8µm).
- Dimensions: L × W ≤ 2000mm × 1000mm; thickness 0.5–200mm (custom cut/slot possible).
- Standards: ISO 9001:2015; Reach, RoHS compliant; full traceability; strict QC on porosity, flexural, and compressive strengths (with digital reports).
- Typical Applications: Heat treatment fixtures, furnace linings, fuel cell flow fields, EDM, vacuum coating, metallurgical molds.
- Lifespan: 12–54 months (usage/environment dependent), full technical support for optimal lifecycle.
- Certifications: SGS, ISO 9001, third-party mechanical/thermal test reports available.
Application Scenarios: Graphite Plates in Industry
- Metallurgy/Heat Treating: Furnace supports, radiant tubes, heat shields, and trays for high-temperature and corrosive atmospheres.
- Energy & Fuel Cells: Graphite plates for fuel cells serve as bipolar plates, providing high conductivity and anti-corrosion properties.
- Chemical Processing: Reaction tank linings, anti-corrosive barriers.
- Semi-conductor/Photovoltaics: Crucible mounts, diffusion supports.
- Aerospace: High-temp jigs and customized fixture plates (for thermal cycling & inert environments).
Need Custom Graphite Plate Solutions?
From prototype batches to volume orders, we offer expert engineering support, rapid sample delivery, and comprehensive after-sales service for all graphite plates for heat treating requirements.
Data Visualizations: Product Comparison and Performance Analysis
| Product Name | Purity (%) | Flexural Strength (MPa) | Thermal Conductivity (W/m·K) | Max. Temp. (Inert/Air) | Density (g/cm³) |
|---|---|---|---|---|---|
| Good Quality Graphite Plate | 99.8 | 72 | 160 | 2500°C / 800°C | 1.90 |
| Standard Graphite Plate | 98.5 | 42 | 125 | 2200°C / 700°C | 1.80 |
| Graphite Plates for Fuel Cells | 99.9 | 58 | 110 | 2300°C / 700°C | 1.75 |
Factory Versus Aftermarket: Manufacturer Comparison for Graphite Plates for Heat Treating
| Criteria | NLGraphite (ISO 9001 Certified) | Typical Aftermarket Supplier |
|---|---|---|
| Raw Material Control | Certified high-purity carbon; batch-traceable | Mixed source; limited certification |
| Processing Precision | Isostatic/CNC tolerance ≤ ±0.03mm | Sawn/milled, tolerance ±0.20mm |
| Surface Finish | Ra ≤ 8µm (double-polished) | Ra ≥ 18µm |
| Custom Service | Full design/technical support; rapid prototyping | Standard size; slow sample turnaround |
| Testing/Reporting | ISO/ANSI tests; 3rd-party reports | In-house only; basic QC |
| Warranty | 1–2 years; fast issue resolution | 3–6 months; limited support |
| Environmental Compliance | Reach/RoHS/SGS certified | Not all certified |
Customization Options for Graphite Plates for Heat Treating
- Shape Customization: Rectangular, circular, grooved, slotted, or with mounting/flow channels cut to user CAD.
- Material Grades: Various grades according to application: EDM, fuel cell, semiconductor, furnace.
- Finish Options: Single/double-sided polish, surface impregnation, coating (anti-oxidation, SiC/Silicone).
- Testing & Certification: Delivered with material analysis, mechanical/thermal data, and compliance certificates per ISO 9001 and ASTM C561.
- Lead Time: Prototyping in 7–10 days; production 15–25 days. Express shipping available for urgent heat treating projects.
Contact us for 3D drawings review and free test samples of graphite plates for heat treating matched to your industry specification.
Real Application Cases & Client Feedback
- Steel Plant Heat Treating (Europe, 2023): Transitioned from steel trays to carbon graphite plates – energy savings of 19% per furnace cycle, reduced plate replacement rate from 1.5×/yr to 1×/2.5 yr.
- Fuel Cell Manufacturer (Asia, 2022): Customized graphite plates for fuel cells with integrated micro-channels: conductivity up by 21%, sealing leakage down by 117 ppm, RoHS/ISO testing passed.
- Chemical Equipment OEM (US, 2023): Switched to high-density plates for reactor liners—solved issue of plate warping and prolonged service intervals from 10 to 34 months.
- Semiconductor Etching: Opted for impurity-controlled plates—process yield improved by 14%, defect rate fell below 0.7% (SEMI, 2023).
“Switching to customized graphite plates for heat treating from NLGraphite cut our furnace maintenance by 60% and delivered quantifiable cost benefits. We’ll deploy these at all sites moving forward.”
— S. Müller, Head of Operations, Steelheat GmbH
FAQ on Graphite Plates for Heat Treating & Related Technical Topics
Q1: What carbon graphite plate grades are best for high-temperature heat treating?
Grades with purity ≥99.5%, density >1.75 g/cm³, and low open porosity (<13%) are optimal. Isostatic pressed grades (ISO 9001- or ASTM C561-certified) ensure minimal distortion and long service life above 2000°C.
Q2: What is the typical size tolerance and surface finish achieved?
CNC machining achieves tight tolerances up to ±0.03mm per side, with surface roughness Ra as low as 4-8µm. Double-sided polishing is available for critical thermal cycling or contact resistance applications.
Q3: Are NLGraphite plates compliant with ISO or ANSI standards?
Yes, products are certified under ISO 9001:2015 and test according to ANSI/ASTM C561; 3rd party mechanical, chemical, and thermal test reports are available with each batch.
Q4: How are graphite plates for fuel cells different from plates for heat treating?
Graphite plates for fuel cells are designed with micro-channels for gas flow, have ultra-high conductivity, and often receive surface treatments for sealing and corrosion resistance, while heat-treating plates focus on thermal stability and mechanical strength under cyclical load.
Q5: What installation or operating precautions are recommended?
Avoid rapid temperature ramp-up/cool-down, ensure correct support and alignment, and inspect for microcracks or warping after each cycle. Use with appropriate atmosphere (inert or vacuum) to maximize longevity.
Q6: What is the warranty/service policy for NLGraphite plates?
Standard warranty is 12–24 months (project/application dependent). Technical support is available for selection, installation, and lifecycle optimization, with transparent reporting and failure analysis backed by industry-leading response times.
Q7: Can you integrate anti-oxidation, resin, or SiC coatings?
Yes. Plates can be customized with SiC, resin, or anti-oxidation (Al, Zr, or Mo-based) coatings for harsh or oxidative environments, greatly extending working life and reducing aging under air exposure.
Delivery, Warranty, and Customer Support
- Lead time: Samples 7–10 days; mass production 2–3 weeks; global express delivery available.
- Warranty: 1–2 years for typical graphite plates for heat treating (validated through installation photos/technical records).
- Customer support: 24/7 technical and shipment support via email, WeChat, or phone; on-site guidance available for volume contracts.
- OEM/ODM cooperation and strict non-disclosure assurance possible for proprietary projects.
- Certifications: SGS, ISO, RoHS, and ASTM-compliant documentation can be included on shipment.
Ready to Maximize Your Heat Treating Reliability?
Contact NLGraphite’s engineering team to discuss your precise application and let us design the optimal graphite plates for heat treating solution for your facility.
