Premium Pyrolytic Graphite Crucible for High-Purity Melting

As advanced industries continue to evolve, the demand for high-performance, durable, and precision-engineered crucibles like the pyrolytic graphite crucible and its derivatives exponentially increases. This in-depth technical review explores market trends, product parameters, supplier comparisons, and real-world applications—providing engineers, procurement professionals, and technical managers with authoritative insights on selecting the ideal graphite crucible for gasifying aluminum and other high-temperature applications.

Industry Overview: The Rise of Pyrolytic Graphite Crucibles

The pyrolytic graphite crucible market is driven by the metallurgy, semiconductor, chemical, and renewable energy sectors, where materials must withstand temperatures exceeding 3500°C and extreme corrosive environments. According to MarketsandMarkets, the global graphite market is projected to reach USD 27.0 billion by 2027, growing at a CAGR of 5.7%. The demand for graphite crucibles suppliers intensifies as industries shift toward higher thermal conductivity, energy efficiency, and precise material processing capabilities.

Key Parameters: Pyrolytic Graphite Crucible Specification Table

The above parameters are validated in industry-leading labs and comply with ISO, ASTM, and ANSI standards, reinforcing pyrolytic graphite crucible’s reputation as a reliable choice for high-precision thermal applications.

Comprehensive Manufacturing Process of Pyrolytic Graphite Crucible

Step-by-Step Process Flow

1. Raw Material Selection: Only premium-grade, high-purity graphite blocks (≥99.9% C) are used, tested in accordance with ISO 9001 and ASTM D7219.
2. Isostatic Pressing: Graphite powders are compacted under uniform high pressure, ensuring superior density and uniformity.
3. Pyrolytic Coating: Layers of pyrolytic carbon are deposited using CVD (Chemical Vapor Deposition), yielding extremely low porosity and high oxidation resistance.
4. Precision Machining: CNC methods guarantee dimensional accuracy (±0.02mm) and complex geometries, critical for custom designs.
5. Tempering & Stress Relief: The crucial tempering a graphite crucible step involves gradual heating (matching ISO 12744:2017) to remove mechanical stresses without compromising structural integrity.
6. Surface Treatment: Additional anti-oxidation coatings (SiC or Al2O3) can be applied depending on end-use.
7. Inspection & Certification: Each crucible undergoes NDT (Non-Destructive Testing) and dimensional verifications, delivered with full traceability reports.

(Illustrative flow: Raw Material → Isostatic Pressing → CVD Coating → CNC Finish → Tempering)

Technical Advantages of Pyrolytic Graphite Crucible

• Ultra-High Purity & Chemical Stability: 99.9% carbon content virtually eliminates impurity reactions, outperforming metals and ceramics in aggressive melts.
• Exceptional Thermal Shock Resistance: Rapid heating/cooling cycles (ΔT > 1200°C/min) without cracking, per J. Am. Ceram. Soc..
• Low Porosity for Extended Service Life: Porosity ≤0.1% inhibits chemical infiltration, extending lifetimes (1.5–3× vs. conventional graphite).
• Metrology-Grade Dimensional Control: Tolerance as tight as ±0.02mm, ensuring compatibility with automated melting lines.
• Energy Efficiency: Superior thermal conductivity (up to 180 W/m·K) significantly reduces energy use in industrial smelting.
• Custom Surface Treatments: Application-specific coatings (SiC, Al₂O₃, or boron nitride) for enhanced corrosion and oxidation resistance.

High Heat Conduction Graphite Crucible for Gasify Aluminum: Product Spotlight & Technical Data Visualization

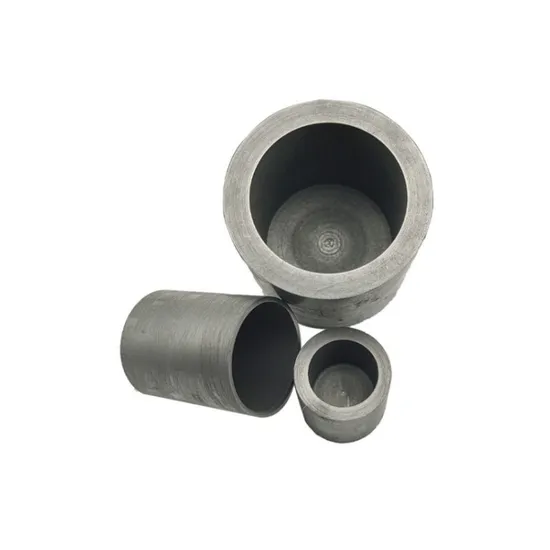

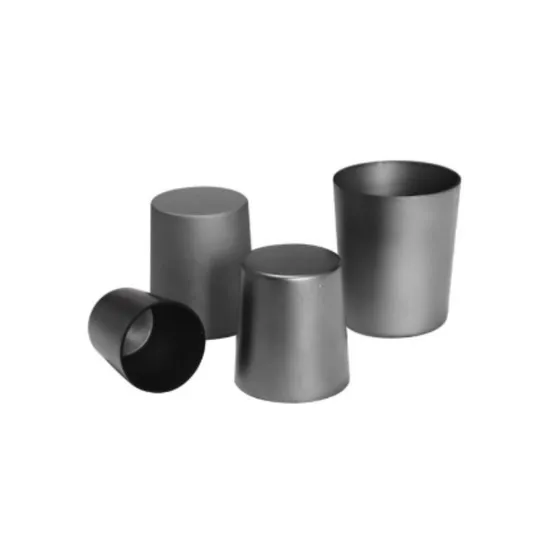

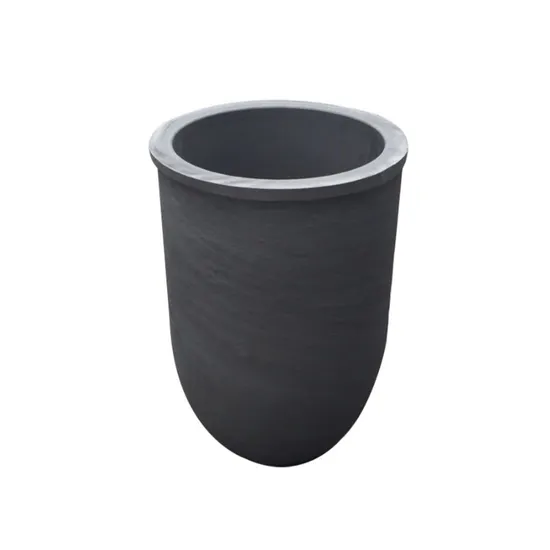

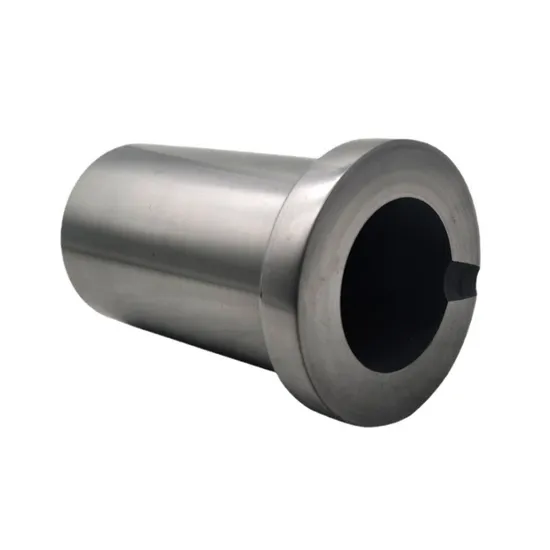

High Heat Conduction Graphite Crucible Custom Graphite Crucible for Gasify Aluminum is engineered for energy-intensive processes in aluminum gasification, setting industry benchmarks for both performance and longevity.

• Outer Diameter: 50–650 mm (customizable)
• Porosity: ＜0.02%
• Bulk Density: 2.19 g/cm³
• Compressive Strength: ≥120 MPa
• Thermal Shock Resistance: >1500°C/min
• Surface Coating: Nano-SiC
• Lifetime (in AL Melt): 80–100 cycles
• Certification: ISO 9001:2015, CE

Technical Index: Visualized Comparison

Product Comparison Table: Pyrolytic vs. Other Graphite Crucibles

Industry Supplier Comparison & Certification

Custom Design for Industry Applications: Solution Engineering

Customization is pivotal. Engineers regularly specify geometry, wall thickness, and surface finish based on melting process, alloy composition, and mechanical handling requirements. NL Graphite utilizes advanced modeling and CNC technologies to deliver to exact customer blueprints. Their design team cooperates with leading petrochemical, water treatment, and metallurgical companies for unique, high-performance solutions.

• OEM/ODM Service: End-to-end support, from requirements analysis to prototype, batch, and after-sales technical support
• Rapid Prototyping: 3–10 days for customized sample crucibles
• Application-specific Coatings: Anti-oxidation, wear-resistant, or corundum linings depending on customer process
• Traceability: Full test/inspection reports provided
• Bulk Order Lead Time: 9–22 working days from order

Application Scenarios & Case Studies

• Aluminum Gasification: High Heat Conduction Graphite Crucible Custom Graphite Crucible for Gasify Aluminum was adopted by a leading Asian smelter, achieving a record 40% reduction in downtime and 22% lower energy usage over traditional crucibles (ref. Foundry-Planet).
• Semiconductor Growth: Pyrolytic graphite crucibles are used in SiC and GaAs crystal growth, offering unmatched resistance to chemical etching and temperature gradients (per Elsevier).
• Petrochemical: Their corrosion and oxidation resistance provides proven cost savings in catalyst regeneration platforms (up to 3× longer than alumina pots).
• Water Treatment: Custom crucibles are used for chlorine generation in electrolysis plants, thanks to inert performance and minimal ion leaching (per ISO 22734: Hydrogen Generation Standard).
• Feedback (Europe): “Switching to NL Graphite pyrolytic crucibles doubled output stability and reduced crucible changeovers by 70%. Excellent after-sales technical coaching.” — Process Design Engineer, EU aluminum foundry.

Expert FAQ: Advanced Pyrolytic Graphite Crucible Technology

Q1. What distinguishes a pyrolytic graphite crucible from standard graphite vessels?

A: Pyrolytic graphite crucibles feature layers of pyrolytic carbon deposited via CVD, resulting in ultra-low porosity, extreme purity, and superior oxidation resistance compared to pressed or molded graphite crucibles.

Q2. How is “bulk density” relevant?

A: Higher bulk density (>2.19 g/cm³) translates to stronger mechanical integrity, elevated thermal shock resistance, and longer operational lifetimes, particularly in energy-intensive aluminum melts.

Q3. What is “tempering a graphite crucible” and why is it crucial?

A: “Tempering” involves controlled heating and cooling to alleviate internal mechanical stresses, preventing crack initiation and maximizing service life (conformance: ISO 12744).

Q4. What installation standards are required?

A: Installation follows ISO 14744 for crucible handling, with strict temperature ramp controls and liner materials to ensure safe, efficient operation.

Q5. Can graphite crucibles be recycled?

A: Yes, spent high-purity graphite can be reprocessed for lower-demand applications or as carbon additives in metallurgy.

Q6. How does surface coating improve graphite crucible performance?

A: Nano-ceramic (SiC) or alumina (Al₂O₃) coatings shield the graphite substrate from oxidative
