Understanding the Different Types of Graphite Electrodes for Industrial Applications

Types of Graphite Electrodes: A Comprehensive Guide

Graphite electrodes are essential components in various industrial processes, most notably in electric arc furnaces (EAFs) used for steelmaking. Understanding the different types of graphite electrodes available is crucial for optimizing performance, reducing costs, and ensuring the quality of final products. This article will delve into the main classifications of graphite electrodes, their characteristics, applications, and factors influencing their selection. Choosing the right electrode significantly impacts the efficiency and effectiveness of your operations. NL Graphite provides high-quality graphite electrodes tailored to various industrial needs.

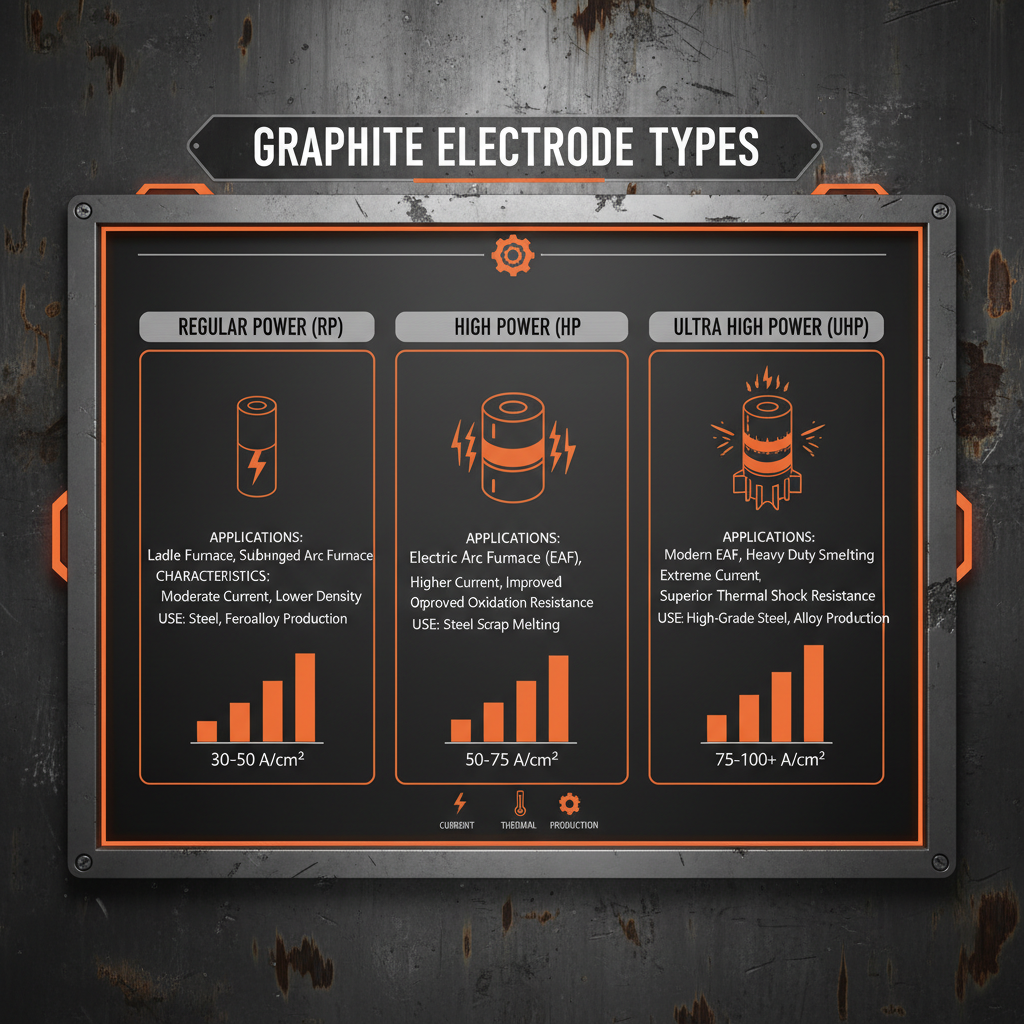

Regular, High Power, and Ultra-High Power Graphite Electrodes

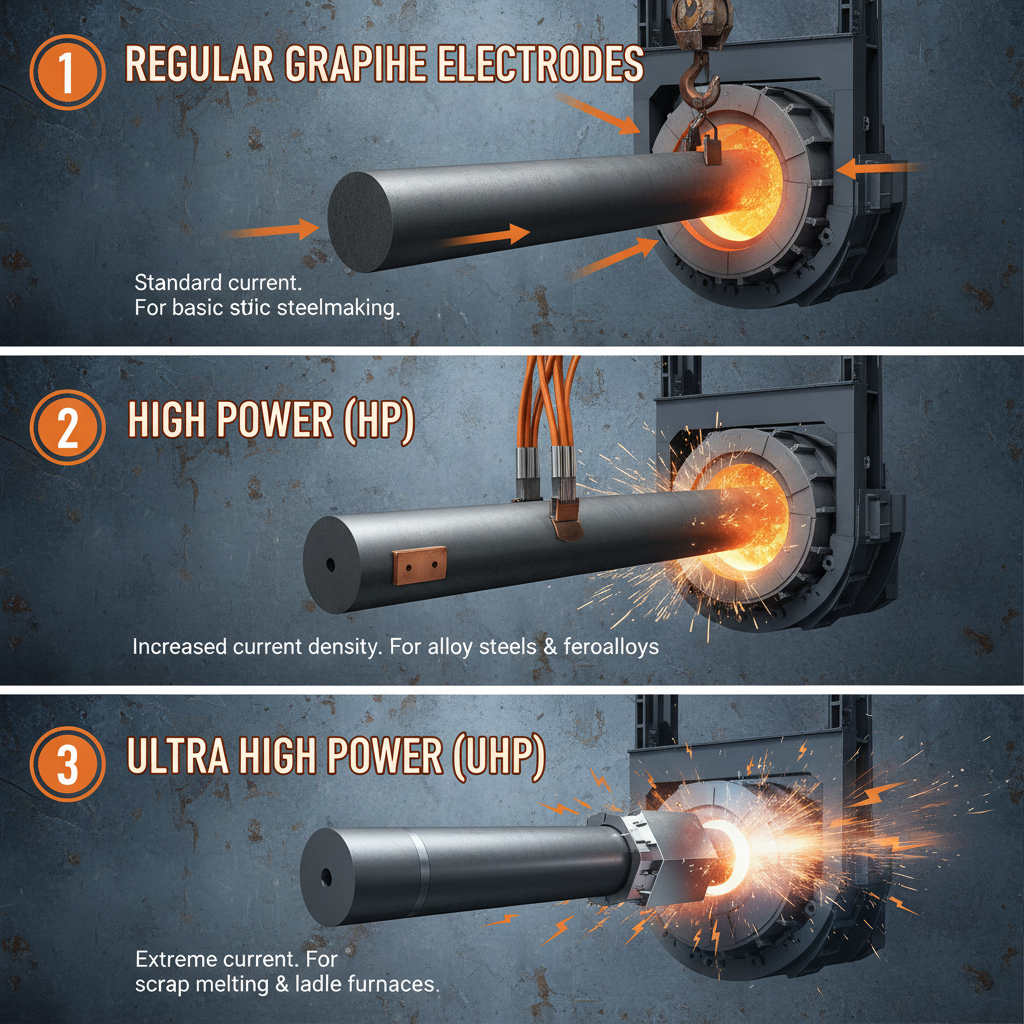

Graphite electrodes are broadly categorized based on their current-carrying capacity and consumption rate. The three primary types are Regular Power (RP), High Power (HP), and Ultra-High Power (UHP). Each type is designed to withstand different electrical loads and operating conditions. RP electrodes are suitable for lower-power applications and have a relatively higher consumption rate. HP electrodes offer improved performance in medium-power EAFs. UHP electrodes, the most advanced type, are specifically engineered for high-power applications, providing superior conductivity, lower consumption, and enhanced resistance to thermal shock. NL Graphite's UHP electrodes are known for their exceptional durability and consistent performance.

Graphite Electrode Grade and Raw Material Impact

The grade of graphite used in manufacturing electrodes significantly affects their properties. Electrodes are commonly made from petroleum coke and pitch coke, with varying ratios impacting density, electrical conductivity, and mechanical strength. Lower-grade graphite electrodes generally have higher consumption rates and are less durable. High-quality electrodes utilize purified graphite with controlled particle size distribution, resulting in improved performance and longevity. The quality of the raw material directly influences the electrode’s resistance to thermal shock and mechanical stress. NL Graphite rigorously selects raw materials to ensure the highest standards of quality and performance.

Types of Graphite Electrodes: A Comparative Analysis

Selecting the appropriate type of graphite electrode depends on specific application requirements and operating parameters. Here’s a comparison of the three main types:

Specialty Graphite Electrodes and Customization

Beyond the standard classifications, specialty graphite electrodes are available for specific applications. These may include electrodes with modified grain structures for enhanced thermal conductivity or electrodes with coatings to reduce oxidation. NL Graphite offers customized electrode solutions tailored to meet unique customer needs, including specific dimensions, grades, and coatings. Working with a reputable supplier like NL Graphite ensures you receive the optimal electrode for your process.

Factors to Consider When Choosing Graphite Electrodes

Selecting the optimal graphite electrode involves considering several factors: furnace type, steel grade, operating conditions, and cost. Higher-power furnaces typically require UHP electrodes, while smaller furnaces may suffice with HP or RP electrodes. The type of steel being produced also influences electrode selection. Understanding these factors is crucial for maximizing efficiency, minimizing downtime, and achieving consistent product quality. NL Graphite's expert team can provide guidance in selecting the most appropriate electrode for your specific application.

Frequently Asked Questions (FAQs)

What is the typical lifespan of a graphite electrode?

The lifespan of a graphite electrode varies considerably based on several factors, including the power level of the furnace, the quality of the electrode material, the steel grade being processed, and operational practices. Generally, an electrode can last anywhere from 40 to 100 hours, but this is merely an estimation. Regular monitoring of electrode consumption is essential. Factors like improper tapping practices, excessive current fluctuations, or contamination in the furnace can significantly shorten the electrode’s lifespan. Proper maintenance and adherence to best practices will maximize the useable life of your electrodes.

How does electrode diameter impact performance?

Electrode diameter plays a crucial role in the overall performance of the electric arc furnace. Larger diameter electrodes can carry higher currents, resulting in increased melting rates and improved energy efficiency. However, larger electrodes also require more powerful and sophisticated electrode holders and feeding mechanisms. Selecting the correct diameter is a balance between maximizing melting capacity and ensuring stable arc operation. Smaller diameters are suitable for lower power applications and offer better control over the arc.

What are the signs that a graphite electrode needs to be replaced?

Several indicators signal the need for graphite electrode replacement. These include excessive consumption rates, noticeable changes in arc stability, physical damage like cracks or breaks, and increased electrical resistance. A significant reduction in electrode length, combined with irregular wear patterns, is also a warning sign. Regular visual inspections and monitoring of key performance indicators are crucial for identifying electrodes nearing the end of their service life. Ignoring these signs can lead to furnace downtime and potential safety hazards.

Can graphite electrode consumption be reduced?

Yes, several strategies can help reduce graphite electrode consumption. Optimizing furnace operating parameters, such as current and voltage, is crucial. Maintaining stable arc conditions and minimizing arc wander reduces electrode wear. Ensuring proper slag control prevents electrode oxidation. Utilizing high-quality electrodes from reputable suppliers like NL Graphite can significantly improve electrode lifespan. Regular furnace maintenance and preventative measures also contribute to reduced consumption.
