Factory Direct Sale Low Consumption Graphite Electrode

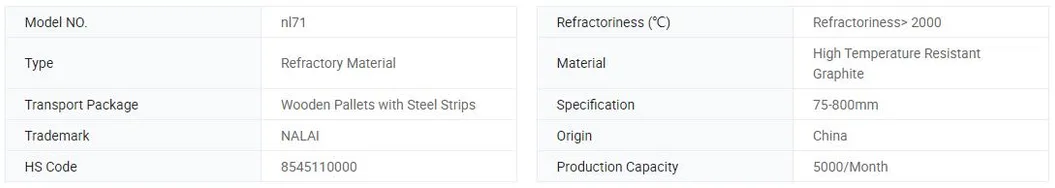

Basic Info.
Model NO.
Graphite Electrode
Application
Eaf and Lf Furnace for Steel Melting
Delivery Time
7-10days
Bulk Density
1.68-1.74 g/cm3
Modulus of Rupture
10-14 MPa
Transport Package
Wooden Pallets with Steel Strips
Specification
customize
Trademark
NALAI
Origin
China
HS Code
8545190000
Product Description

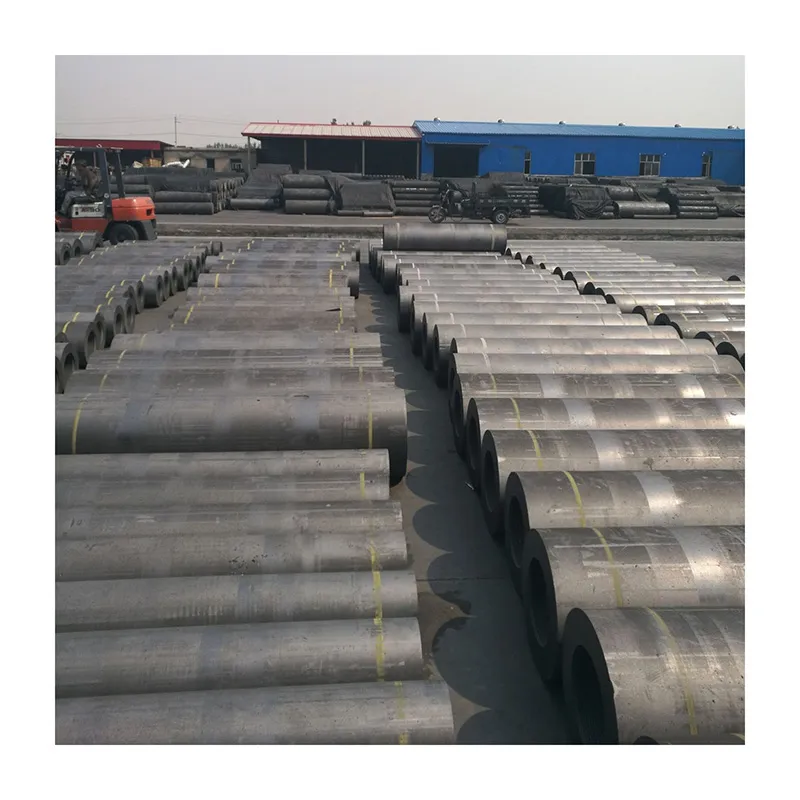

Graphite Electrodes
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
| Regular power | High power | Ultra high power | ||||||||
| Item | Unit | 3-24 inch | 4-24 inch | 14-24 inch | 12-20 inch | 22-28inch | ||||
| φ75-600mm | φ100-300 | φ350-600 | φ300-500mm | φ550-700mm | ||||||
| Electric Resistivity | Electrode | μΩ.m | 7.0-9.0 | 5.5-6.8 | 5.5-6.5 | 4.8-5.8 | 4.5-5.5 | |||
| Nipple | 4.5-5.5 | 4.0-5.0 | 3.5-4.0 | 3.0-4.0 | 2.5-3.5 | |||||
| Bending Strength | Electrode | MPa | 8.0-12.0 | 9.0-12.0 | 10.0-14.0 | 10.0-15.0 | 12.0-16.0 | |||
| Nipple | 19.0-22.0 | 16.0-20.0 | 20.0-23.0 | 20.0-24.0 | 22.0-25.0 | |||||
| Elastic Modulus | Electrode | GPa | 7.0-11.0 | 8.0-12.0 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 | |||
| Nipple | 12.0-14.0 | 12.0-15.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | |||||
| Bulk Density | Electrode | g/cm3 | 1.60-1.65 | 1.68-1.70 | 1.68-1.72 | 1.70-1.75 | 1.70-1.75 | |||
| Nipple | 1.75-1.8 | 1.78-1.82 | 1.78-1.82 | 1.78-1.85 | 1.80-1.85 | |||||
| Ash | Electrode | % | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | |||
| Nipple | ||||||||||
| CTE(100-600)ºC | Electrode | 10-6/ºC | 2.00-2.4 | 1.6-2.0 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 | |||
| Nipple | 1.80-2.2 | 1.1-1.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 | |||||

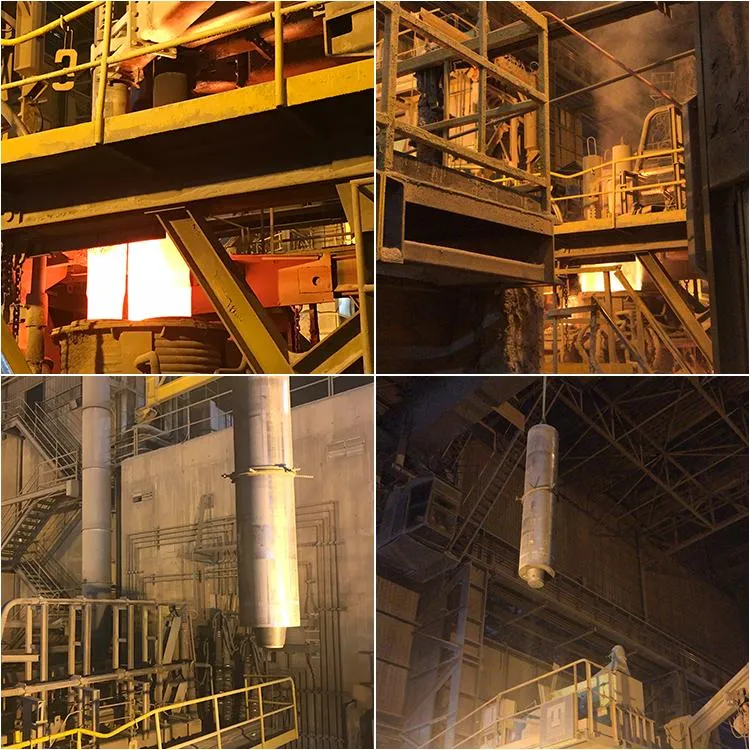

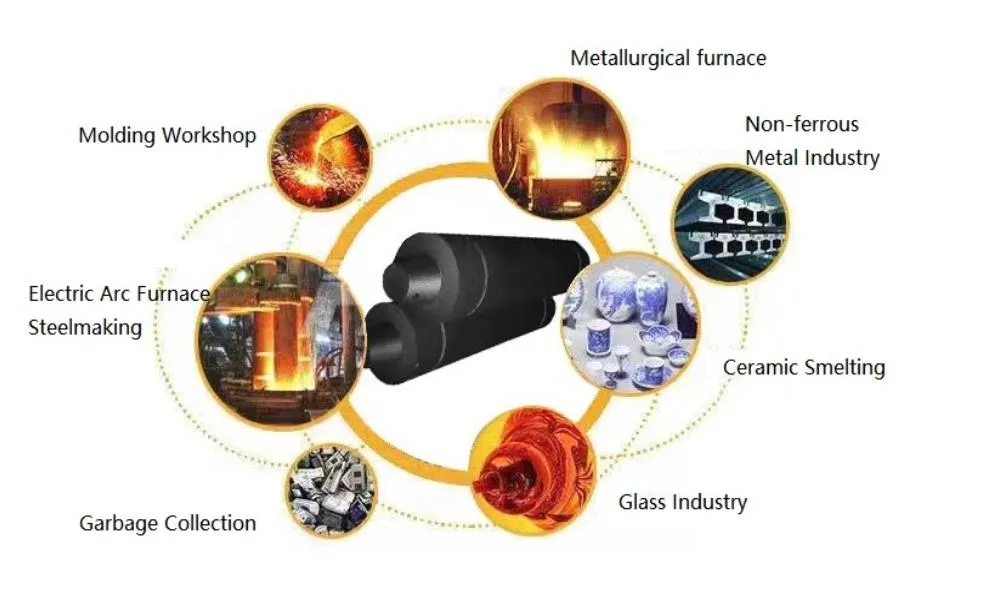

Application

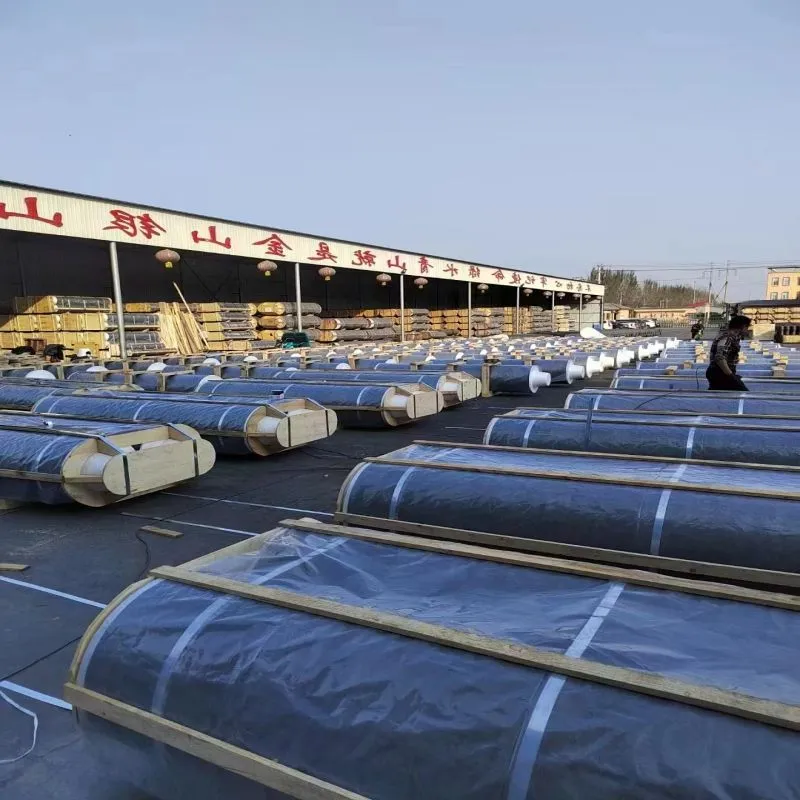

Packing&Delivery

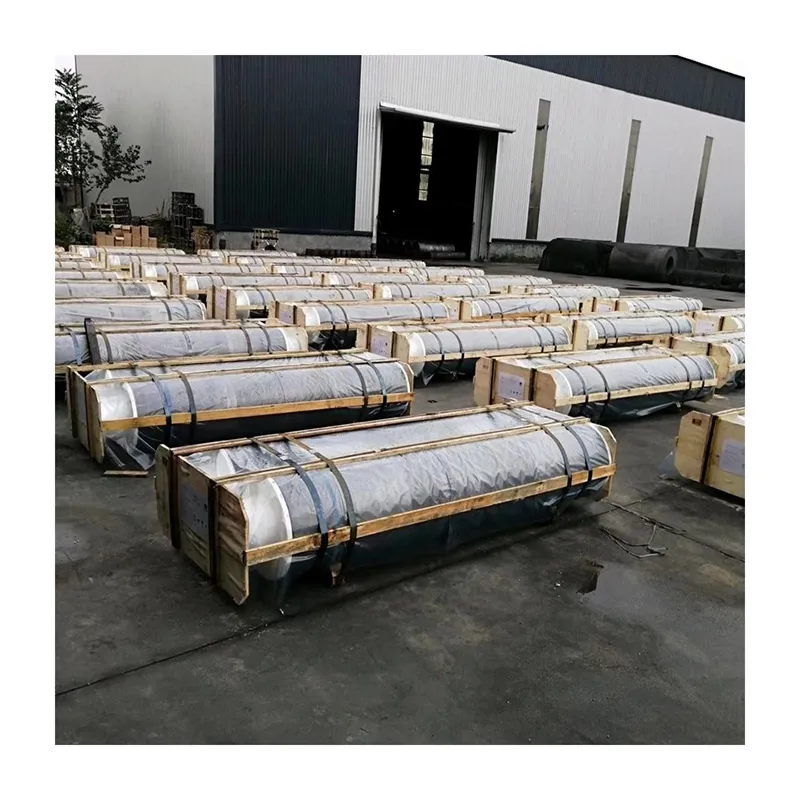

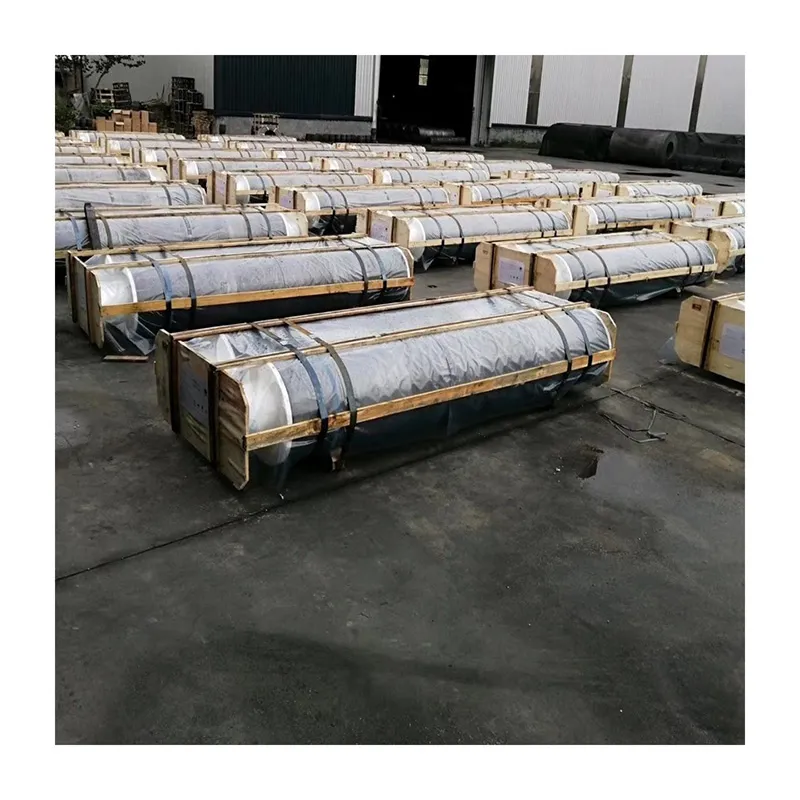

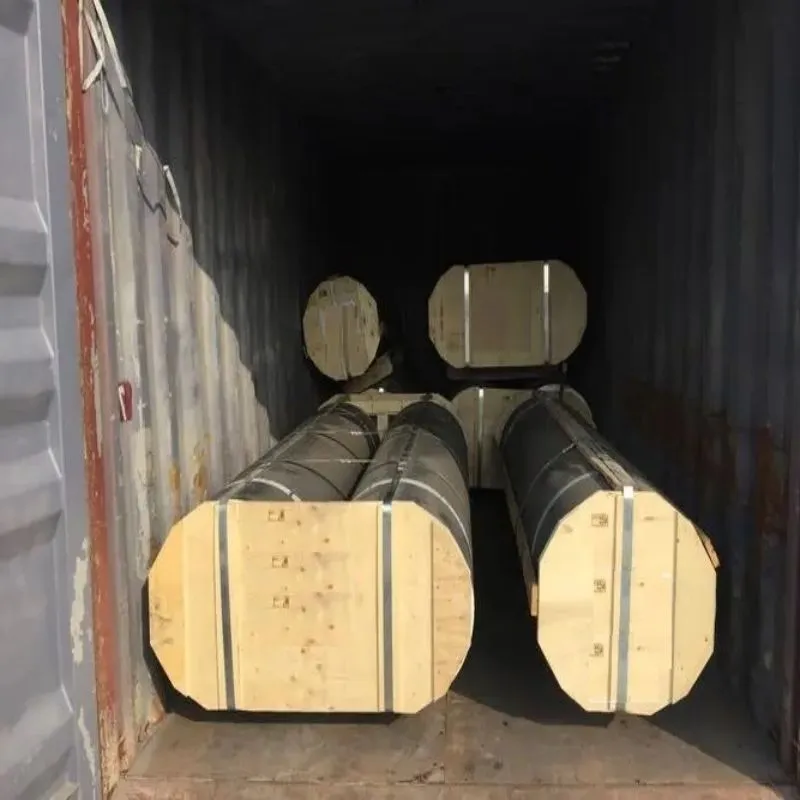

Packing: Wooden cases with pallet and steel belt fastening, make sure the packing is suitable to sea and train transportation.
Certifications
Company Profile
Shijiazhuang Nalai Biotechnology Co., Ltd.
Company Introduction
Based in Shijiazhuang, Shijiazhuang Nalai Biotechnology Co., Ltd. is a leading manufacturer and distributor of graphite electrodes. Dedicated to offering premium-quality products, our graphite electrodes are widely utilized in steelmaking, non-ferrous metal smelting, chemical industries, and electric furnaces. With a focus on technological advancement and innovation, we continuously strive to meet the diverse needs of our clients.
Quality and Service
At Nalai Biotechnology, quality is paramount. We adhere to strict quality control measures throughout the production process, ensuring the reliability and durability of our graphite electrodes. Additionally, we provide comprehensive customer service, including technical support and after-sales assistance, to ensure our clients' satisfaction.
Looking Forward
Looking ahead, Nalai Biotechnology remains committed to delivering exceptional graphite electrodes while continuing to expand our market reach. We aim to foster long-term relationships with our clients, driving mutual growth and success in the graphite electrode industry.
If you need, please feel free to contact us. We will provide you with the most competitive price, high quality and excel service.,
etc

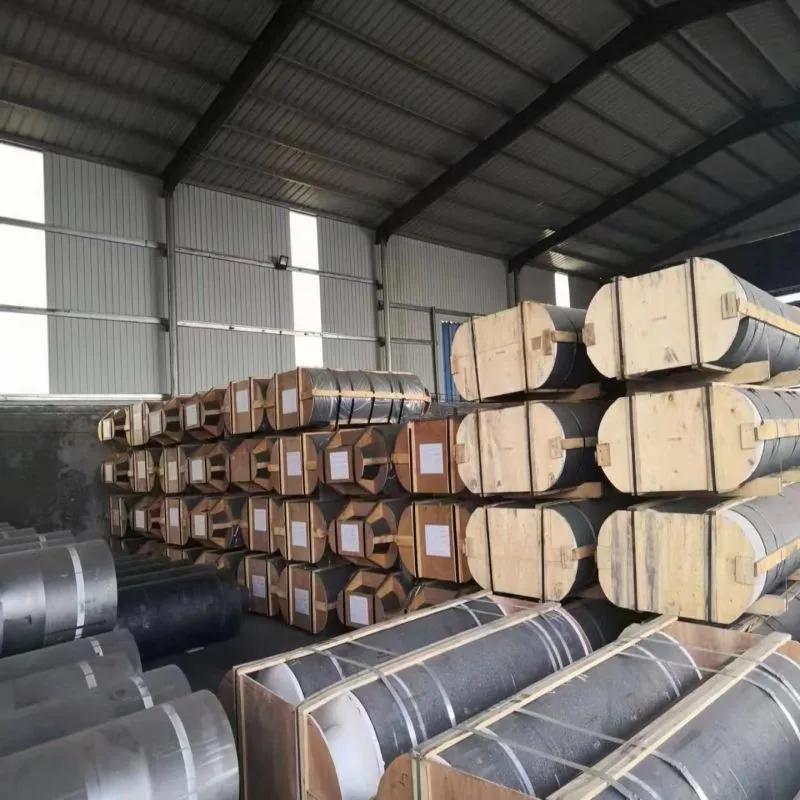

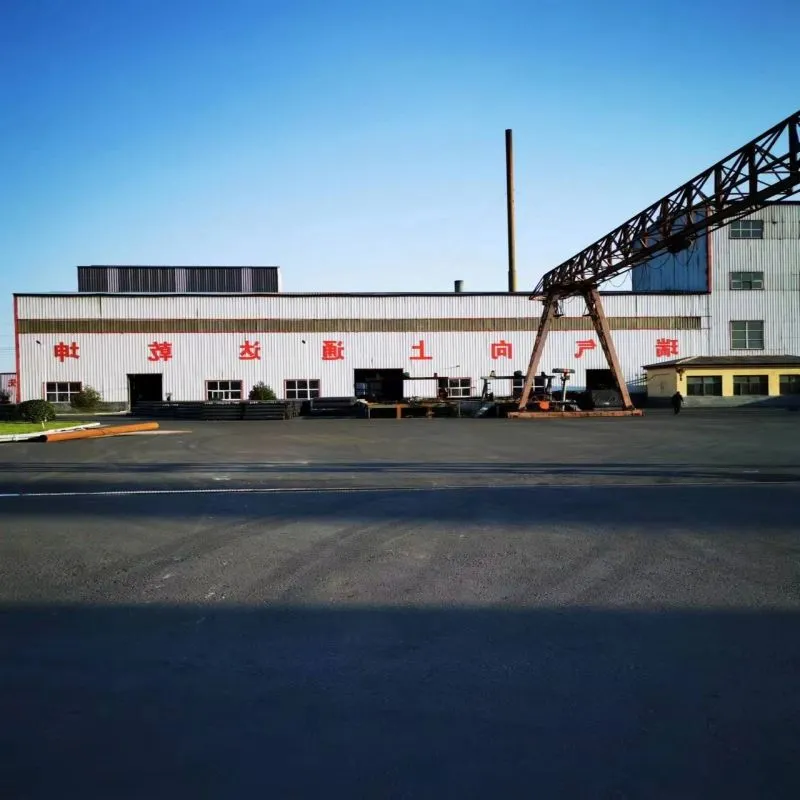

Factory&Workshop
FAQ
Q: What information should I let you know if i want to get a quotation?
A: The required material dimension (diameter*length; if possible, please kindly supply us drawings).
If it is possible, please also provide the application of products, we will recommend the most suitable products with details for confirmation.
Q: How can you control your quality?
A: For each production processing, We have a complete QC system for the chemical composition and physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q: What is your lead time?
A: It usually needs about 15- 20 days after receiving the PO.
Q: What are your payment terms?
A: We can accept a 30% deposit, 70% balance to be against the BL copy or by LC, or other payment terms. (according to your order value)
Q: Can we visit your company?
A: Yes, for sure, It's my pleasure to visit Our company.
Q: What is the shipping cost?
A: The shipping cost is determined by the destination port, weight, packing size, total CBM of the products, we will try best to get the most reasonable shipping cost from the forwarders or express couriers to help you save more money.
